1
Engine displacement
125
2
Model
HEXAGON
3
Year
1999
4
Trim
HEXAGON LX4
5
Parts Catalog
Oil breather valve
6
Parts Diagram
Parts Catalog
Head cover
by
Chain tensioner
Oil breather valve
1
2
3
4
5
6
7
8
9
10
11
12
13
1
COVER
434893
Not Available
2
TUBE
436916
£6,70 Unit Price incl. VAT
3
Spring
430771
Not Available
4
Cup
430770
Not Available
5
Oil breather diaphragm
430769
Not Available
6
Breather
430768
Not Available
7
Hex screw M6x22
031091
Not Available
8
Washer
016335
Not Available
9
Ring
478355
Not Available
10
Gasket
430772
Not Available
11
Gasket
224568
£3,40 Unit Price incl. VAT
12
Screw m6x70
434429
£2,42 Unit Price incl. VAT
13
Hose clamp
709676
Not Available

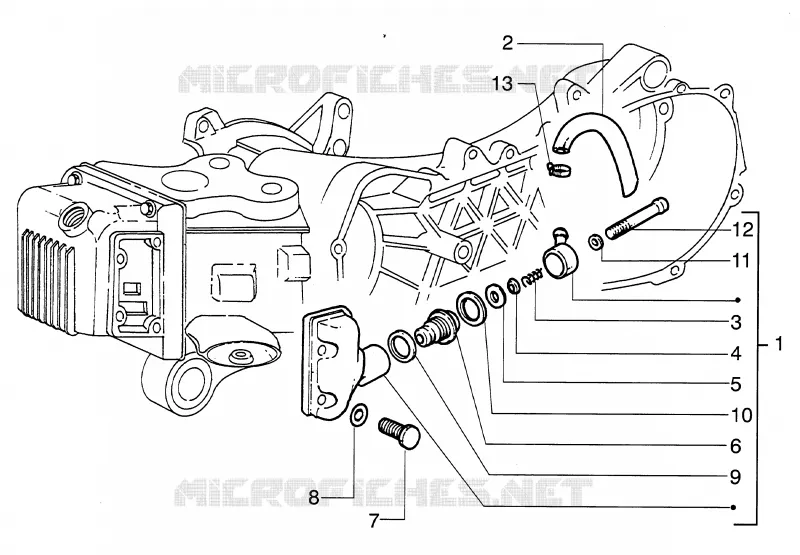

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
