Engine displacement
125
2
Model
HEXAGON
3
Year
1998
4
Trim
HEXAGON LX4
5
Parts Catalog
Head cover
6

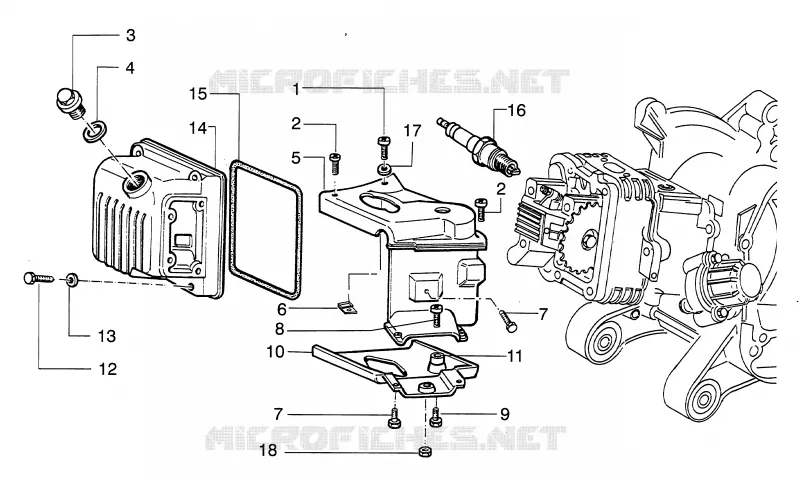

Parts Diagram
Parts Catalog
Rocker arm support
by
Oil breather valve
Head cover
1
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
1
screw
015737
Not Available
2
Screw M5x16
015715
Not Available
3
Oil unload plug
436692
£10,55 Unit Price incl. VAT
4
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
5
Element
486067
Not Available
6
Plate
196613
Not Available
7
Screw M5x16
015715
Not Available
8
screw
015835
Not Available
9
screw
296324
£0,98 Unit Price incl. VAT
10
Element
436458
Not Available
11
Spacer
436912
Not Available
12
Screw w/ flange M6x25
414837
Not Available
13
Washer
016335
Not Available
14
Head cover
480926
Not Available
15
Gasket
481075
£7,48 Unit Price incl. VAT
16
Spark plug (Champion) RG4HC
436911
Not Available
17
Washer
013754
Not Available
18
Nut M8x6,5
012136
Not Available
