Parts Catalog
Electrical systems
6
Parts Diagram
Parts Catalog
Rear turn indicator
by
Drive shaft
Electrical systems
1
1
1
2
2
3
4
5
7
7
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
1
screw M6x14
008375
Not Available
2
Spring washer 6,4x11,8x1
016406
Not Available
3
Nut
182872
£1,68 Unit Price incl. VAT
4
STIRRUP
290406
Not Available
5
Nut M6
020106
Not Available
7
Flat washer 6,4x12x1
003056
Not Available
8
Rem. control switch
218824
£44,48 Unit Price incl. VAT
9
screw
015946
Not Available
10
Cover
290404
£8,21 Unit Price incl. VAT
11
Fuse 7,5A
252945
£2,26 Unit Price incl. VAT
12
Nut M 3
020003
Not Available
13
Washer
016403
Not Available
14
Bracket
290405
£1,45 Unit Price incl. VAT
15
screw
000838
Not Available
16
Fuse holder
290402
£9,98 Unit Price incl. VAT
17
Pad
216895
£4,10 Unit Price incl. VAT
17
BUFFER
164887
Not Available
18
Battery
218823
Not Available
18
Battery
217153
£65,24 Unit Price incl. VAT
19
BUFFER
216306
Not Available
20
Strip
090854
Not Available
21
Pad
216895
£4,10 Unit Price incl. VAT
23
DOWEL
217403
£2,00 Unit Price incl. VAT
24
CABLE HARN.
290435
Not Available
24
CABLE HARN.
234260
£25,58 Unit Price incl. VAT
25
Fairlead
119975
£2,23 Unit Price incl. VAT
26
Nut
020105
Not Available
27
Spring washer 8,5x5,1x1,5
016405
Not Available
28
Cap
217421
£8,94 Unit Price incl. VAT

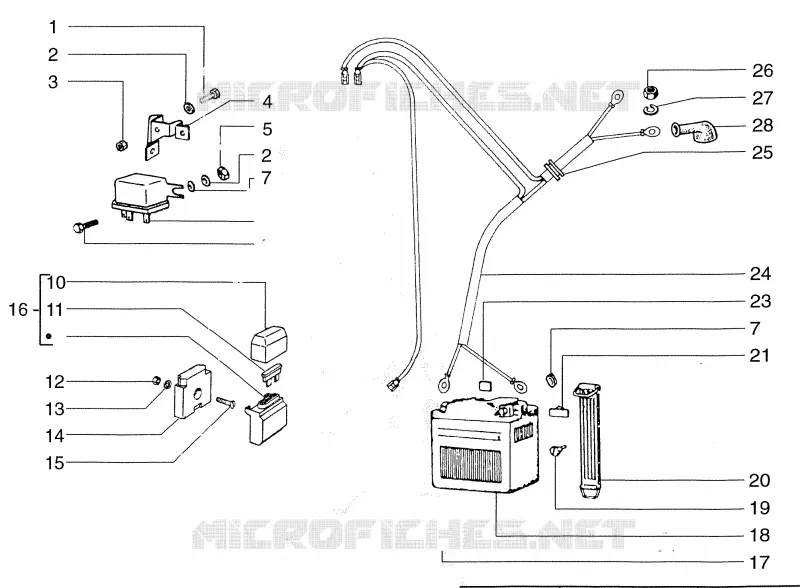

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
