Flywheel magneto cover - Oil filter for Liberty iGet 4T 3V ie ABS from 2016

Free shipping for all orders to United Kingdom over £150! See conditions.

Remote control switches - Battery - Horn

Flywheel magneto cover - Oil filter

1

Oil filter plug

B015456

Not Available

2

O-ring 31,47x1,78

285536

£1,64 Unit Price incl. VAT

3

Intake oil filter

B015454

£2,17 Unit Price incl. VAT

4

O-ring 20,35x1,78

288474

£0,52 Unit Price incl. VAT

5

Oil filter

82635R

Not Available

6

Special screw

B015455

£8,26 Unit Price incl. VAT

7

Oil pressure sensor

641541

Not Available

8

Self tapping screw

1A001106

£2,70 Unit Price incl. VAT

9

Washer 10,5x17x1,5

B015988

Not Available

10

Oil pump gear

287913

£8,52 Unit Price incl. VAT

11

Screw w/ flange M6x14

B016426

£1,27 Unit Price incl. VAT

12

Belleville spring

B015991

£1,24 Unit Price incl. VAT

13

Self-tapping screw M5x12

015585

Not Available

14

Complete flywheel side duct

1A003745

Not Available

15

Bushing

B015908

£6,92 Unit Price incl. VAT

16

Special cap screw

1A001680

£0,97 Unit Price incl. VAT

17

Oil dipstick

1A000619

£8,88 Unit Price incl. VAT

18

O-ring

479986

Not Available

19

Plain washer 5,4x10x0,8

003055

Not Available

20

Complete flywheel cover

8798545

£148,94 Unit Price incl. VAT

21

Gasket ring 14x28x7

B015692

Not Available

22

Flywheel housing cover gasket

877671

£11,95 Unit Price incl. VAT

23

Screw w/ flange M6x30

B016792

£1,27 Unit Price incl. VAT

24

screw M6x35

1A000348

£1,73 Unit Price incl. VAT

25

Screw w/ flange M6x50

1A000349

£0,74 Unit Price incl. VAT

26

Screw w/ flange M6x90

B016776

£1,24 Unit Price incl. VAT

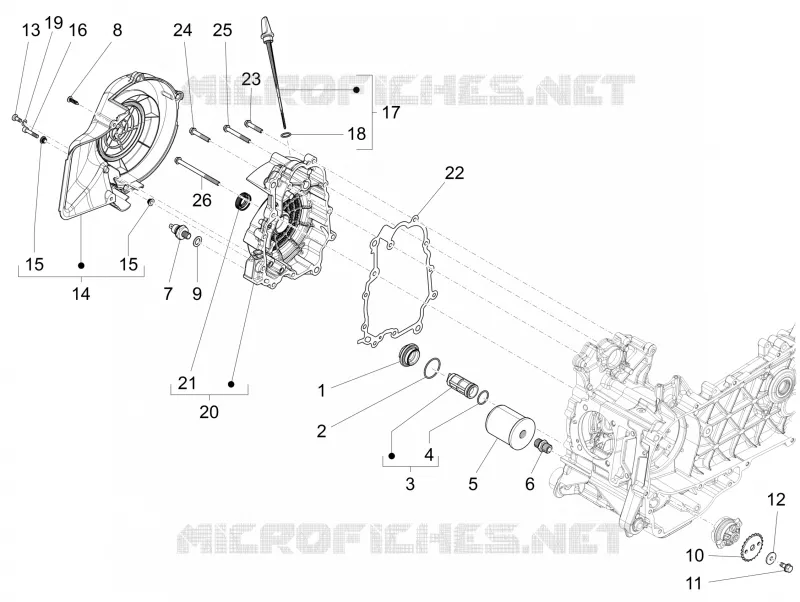

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
