1
Engine displacement
50
2
Model
EAGLET
3
Year
1998
4
Trim
Eaglet automatic
5
Parts Catalog
Cylinder-piston-wrist pin, assy
6
Parts Diagram
Parts Catalog
Headlamps and turn signal lamps
by
Head

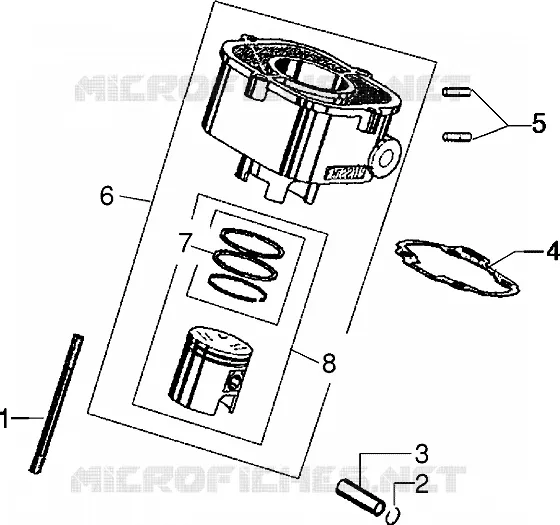

Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
1
Stud bolt
951883
Not Available
2
Ring
951886
Not Available
3
Piston pin
951887
Not Available
4
Gasket
951888
Not Available
5
Stud bolt
951950
Not Available
6
Cil.pis.as.
951902
Not Available
7
Piston rings set
951903
Not Available
7
Piston rings set
951803
Not Available
7
Piston rings set
951802
Not Available
8
Piston assy
951801
Not Available
8
Piston assy
9519040001
Not Available
8
Piston assy
951800
Not Available
8
Piston assy
9519040002
Not Available
8
Piston assy
9519040003
Not Available

Find the detailed Cylinder-piston-wrist pin, assy GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
