1
Engine displacement
50
2
Model
GSM
3
Year
1999
4
Trim
GSM
5
Parts Catalog

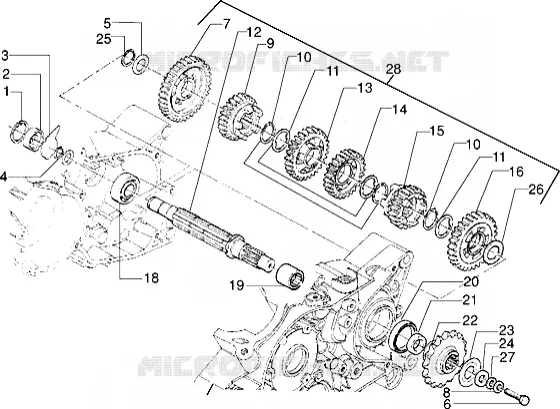

Counter shaft
6
Parts Diagram
Parts Catalog
Main shaft
by
Counter shaft
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
1
Snap ring
006628
Not Available
2
Cup
942206
Not Available
3
Plate
942725
Not Available
4
Circlip
942138
Not Available
5
Shoulder washer
319429
Not Available
6
screw
434022
Not Available
7
Gear 1a
432589
Not Available
8
Spring washer 13,75x8,15x4,5
016408
Not Available
9
Gear 5a
432590
Not Available
10
Ring
432596
Not Available
11
Thrust washer
942093
Not Available
12
Driven shaft
432584
Not Available
13
Gear 3a
432591
Not Available
14
Gear 4a
432592
Not Available
15
Gear 6a
434198
Not Available
16
Gear 2a
432594
Not Available
18
Bearing
942240
Not Available
19
Roller cage
432621
Not Available
20
Oil seal
434065
Not Available
21
Spacer
433845
Not Available
22
Pinion
434208
£31,13 Unit Price incl. VAT
23
Belleville spring
433843
Not Available
24
Washer
434018
Not Available
25
Snap ring
006632
Not Available
26
Washer
319431
Not Available
27
Washer
434018
Not Available
28
Sec. shaft assy
433864
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
