1
Engine displacement
50
2
Model
GSM
3
Year
2001
4
Trim
GSM
5
Parts Catalog
Water pump
6
Parts Diagram
Parts Catalog
Pedal-master cylinder
by
Rear brake caliper

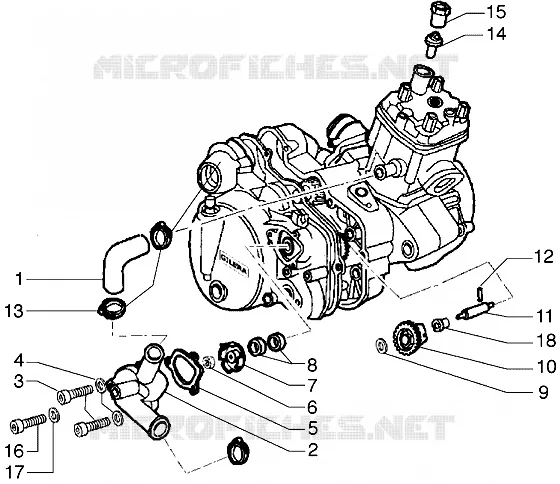

Water pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Cooling tube
ODN00H03801041
Not Available
2
Pump cover
ODN00H03800132
Not Available
3
screw
ODN00002051551
Not Available
4
Plain washer d5
ODN00000031050
Not Available
5
Cover gasket
ODN00H03800141
Not Available
6
Nut
ODN00M03800221
Not Available
7
Rotor
ODN00H03800151
Not Available
8
Joint
ODN00H03810211
Not Available
9
Stop washer
ODN00H05000281
Not Available
10
Pinion
ODN00H03800381
Not Available
11
Waterpump shaft
ODN00H03800161
Not Available
12
Transmission key
ODN00053030000
Not Available
13
Hose clamp
ODN00H03800751
Not Available
14
Thermostat
ODN00H03800431
Not Available
15
Nut
ODN00H03810421
Not Available
16
screw
ODN00002051251
Not Available
17
Washer
ODN00H03800441
Not Available
18
Ring nut
ODN00H03800231
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
