Engine displacement
50
2
Model
H@k
3
Year
1999
4
Trim
H@k
5
Parts Catalog
Starting shaft
6
Parts Diagram
Parts Catalog
Toolkit
by
Water pump
Starting shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Start. lever
942739
Not Available
2
Rubber spacer
306926
Not Available
3
screw
811613
Not Available
4
Shoulder
320097
Not Available
5
Circlip D.15
006415
Not Available
6
Circlip
006416
Not Available
7
Shoulder
942156
Not Available
8
Starting gear
9420434
Not Available
9
plate
324339
Not Available
10
Shoulder
330383
Not Available
11
Gasket
942143
Not Available
12
screw
942117
Not Available
13
Spacer
942045
Not Available
14
Spring
942303
Not Available
15
Spring
316105
Not Available
16
Sliding pinion
9420444
Not Available
17
O-ring
006714
Not Available
18
Starting shaft
9420424
Not Available
19
Shoulder
942156
Not Available
20
Roller cage
3511160001
Not Available
20
Roller cage
3511160002
Not Available

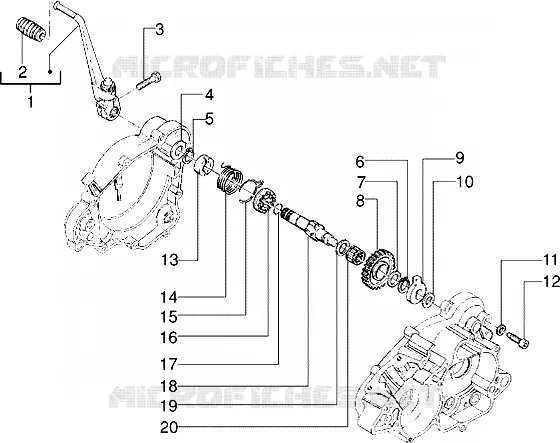

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
