Parts Catalog
Carburettor
6

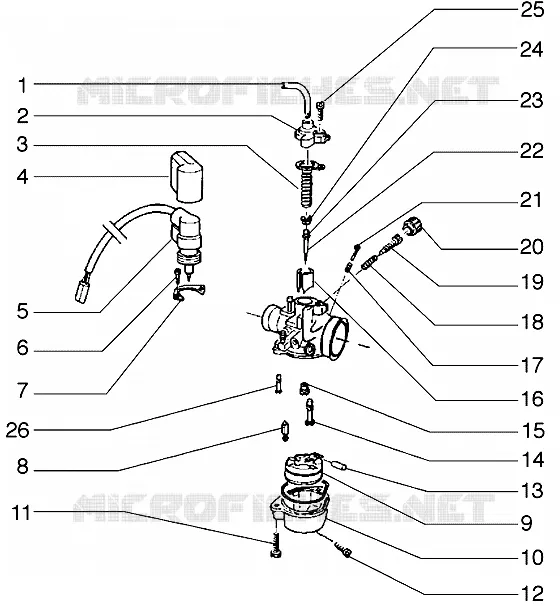

Parts Diagram
Parts Catalog
Carburettor
by
Secondary air box
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Baffle tube
113903
£6,40 Unit Price incl. VAT
2
Gas valve cover
431654
£4,97 Unit Price incl. VAT
2
Gas valve cover
CM109001
Not Available
3
Gas valve spring
482942
£1,36 Unit Price incl. VAT
3
Gas valve spring
435694
Not Available
4
Guard
485671
£10,66 Unit Price incl. VAT
4
Cap
435704
Not Available
5
Starter
82567R
Not Available
5
Electronic ignition unit
CM106002
Not Available
6
Sec. screw
435686
Not Available
6
screw
289575
£2,18 Unit Price incl. VAT
7
Plate
288863
£2,48 Unit Price incl. VAT
7
Plate
435685
Not Available
8
Jet Needle
435708
Not Available
8
Jet Needle
482915
Not Available
9
Float
435703
Not Available
9
Float cpl.
482916
£18,86 Unit Price incl. VAT
10
Float chamber
827037
Not Available
10
Complete reservoir
484704
£25,66 Unit Price incl. VAT
11
Float chamber fixing screw
288862
£3,06 Unit Price incl. VAT
11
Sec. screw
435684
Not Available
12
screw
432456
£7,69 Unit Price incl. VAT
13
Pin
435702
Not Available
13
Float pin
288881
£1,84 Unit Price incl. VAT
14
Idle jet
CM102103
£4,21 Unit Price incl. VAT
14
Idle jet
CM108501
Not Available
15
Main jet 56
CM101707
£5,44 Unit Price incl. VAT
15
Main jet 60
CM101811
Not Available
15
Main jet 53
CM101704
£11,28 Unit Price incl. VAT
16
Gas valve
828336
Not Available
16
Gas valve
CM141710
£8,82 Unit Price incl. VAT
16
Gas valve
CM108902
Not Available
17
Spring
435697
Not Available
17
Spring
085285
Not Available
18
Spring
152608
£1,14 Unit Price incl. VAT
18
Spring
435699
Not Available
19
Adjusting screw
288880
£11,53 Unit Price incl. VAT
19
Adjusting screw
825155
Not Available
20
Knob
288878
£1,99 Unit Price incl. VAT
21
Air adjuster screw
CM107701
£6,98 Unit Price incl. VAT
21
screw
CM110501
Not Available
22
Conical pin
CM107510
£18,34 Unit Price incl. VAT
22
Conical pin
CM107816
Not Available
23
Ring
288872
£1,38 Unit Price incl. VAT
23
O-ring
435692
Not Available
24
Lock
CM108401
Not Available
24
Conical pin clip
288873
£2,12 Unit Price incl. VAT
25
screw
288865
£1,15 Unit Price incl. VAT
25
Sec. screw
435688
Not Available
26
Starter jet 3/8
431635
Not Available
26
Starter jet
CM102702
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
