1
Engine displacement
500
2
Model
NEXUS
3
Year
2005
4
Trim
Nexus 500
5
Parts Catalog
Crankshaft
6
Parts Diagram
Parts Catalog
Electrical Devices
by
Main Cables Unit

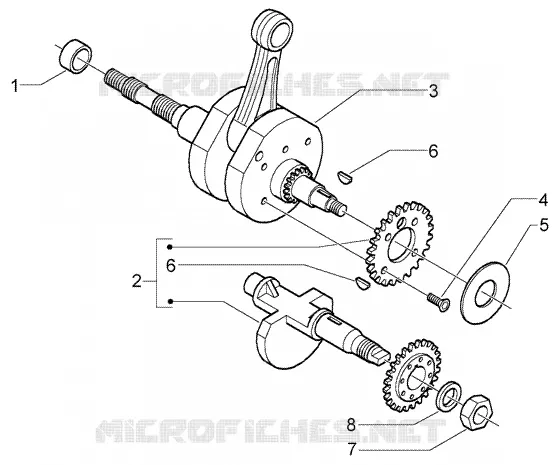

Crankshaft
1
2
3
4
5
6
6
7
8
1
Spacer
828205
Not Available
2
Countershaft-gears kit
832123
Not Available
2
Complete countershaft gear
841456
Not Available
3
Drive shaft
8322150001
Not Available
3
Drive shaft
8322150002
Not Available
4
Screw
830129
£0,22 Unit Price incl. VAT
5
Thrust washer
830012
£10,49 Unit Price incl. VAT
6
Transmission key
000267
Not Available
7
Nut m12x1,25 h=7
830112
Not Available
7
Nut M14x1,5
021214
Not Available
8
Spacer
829752
Not Available
8
Spacer
841458
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
