1
Engine displacement
125
2
Model
RUNNER
3
Year
2001
4
Trim
Runner 125 FX 2T
5
Parts Catalog

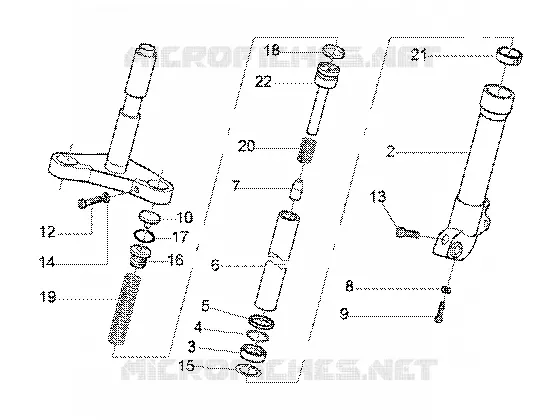

Showa front fork component parts
6
Parts Diagram
Parts Catalog
Rear wheel shaft
by
Water pump
Showa front fork component parts
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
1
plate
598324
Not Available
2
Sleeve
598325
Not Available
2
Sleeve
598326
Not Available
3
Oil seal
598331
Not Available
4
Oil seal
598333
Not Available
5
Dust cover
598332
Not Available
6
Sleeve
598342
Not Available
7
Pad
598334
Not Available
8
Washer
598321
Not Available
9
screw
598320
Not Available
10
Cover
598339
Not Available
11
Gasket
598335
Not Available
12
screw
598322
Not Available
13
screw
598341
Not Available
14
Washer
598323
Not Available
15
Washer
598330
Not Available
16
Cover
598327
Not Available
17
Ring
598328
Not Available
18
Ring
598336
Not Available
19
Spring
598344
Not Available
20
Spring
598345
Not Available
21
Bushing
598329
Not Available
22
pipe
598343
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
