1
Engine displacement
200
2
Model
RUNNER
3
Year
2002
4
Trim
Runner 200 VXR 4T
5
Parts Catalog
Cylinder-piston-wrist pin, assy
6
Parts Diagram
Parts Catalog
Electrical device
by
Electrical device

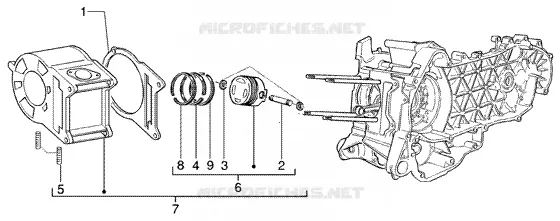

Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
9
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
Not Available
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Piston pin
829529
£9,10 Unit Price incl. VAT
3
Snap ring
963486
£0,58 Unit Price incl. VAT
4
Scraper ring 72x1
484908
£39,19 Unit Price incl. VAT
5
Stud bolt M6
239397
£0,83 Unit Price incl. VAT
6
Piston-wrist pin assy.
8300530002
Not Available
6
Piston-wrist pin assy.
8300530001
Not Available
7
Cylinder, assy.
830052
Not Available
8
Ring 72x1.5
830486
£42,68 Unit Price incl. VAT
8
Piston ring
830485
Not Available
9
Scraper ring 72x2,5
486363
£31,91 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
