1
Engine displacement
200
2
Model
RUNNER
3
Year
2003
4
Trim
Runner 200 VXR 4T
5
Parts Catalog

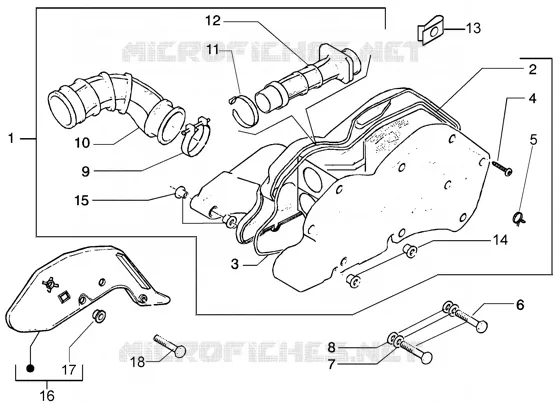

Air filter
6
Parts Diagram
Parts Catalog
Engine
by
Catalytic silencer
Air filter
8
9
10
11
12
13
14
1
2
3
4
5
6
7
15
16
17
18
1
Air cleaner, assy.
829255
Not Available
1
Air cleaner, assy.
844070
Not Available
2
Air filter
829258
Not Available
3
Filter cover gasket
829259
£11,96 Unit Price incl. VAT
4
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
5
Hose clamp
CM002910
£0,98 Unit Price incl. VAT
6
Special cap screw M6x50
018640
Not Available
7
Notched washer 6,6x11x0
012533
Not Available
8
Flat washer 6,4x12x1
003056
Not Available
9
Hose clamp
260918
£4,78 Unit Price incl. VAT
10
Hose
827939
£79,10 Unit Price incl. VAT
11
Hose clip 35-33
830015
Not Available
12
Air intake hose
829543
£61,63 Unit Price incl. VAT
13
Spring plate M6
254485
£1,64 Unit Price incl. VAT
14
Knurled bushing
830056
£1,27 Unit Price incl. VAT
15
Bushing
830057
£3,78 Unit Price incl. VAT
16
Protection
577603
Not Available
17
Knurled bushing
830056
£1,27 Unit Price incl. VAT
18
screw M6x35
414838
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
