Engine displacement
50
2
Model
SMT
3
Year
2006
4
Trim
SMT 50
5
Parts Catalog
Gear-box components
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Gear-box components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
42
43
44
44
45
46
47
48
49
50
51
52
53
54
56
58
58
60
60
62
62
63
64
65
66
67
68
68
69
70
71
72
73
1
Clutch drum
847098
Not Available
2
Nut 10M100
847217
£3,65 Unit Price incl. VAT
3
Clutch pressure plate
847045
£83,69 Unit Price incl. VAT
4
Washer
847218
£7,12 Unit Price incl. VAT
5
Plate
847220
Not Available
6
Nut
847221
£1,96 Unit Price incl. VAT
7
Driven clutch disc
847043
£19,56 Unit Price incl. VAT
8
Driving clutch disc
847044
£15,91 Unit Price incl. VAT
9
screw
847179
Not Available
10
Bearing
82835R
Not Available
11
Spacer
847040
Not Available
12
Washer
847042
Not Available
13
Clutch collar
847046
£74,65 Unit Price incl. VAT
14
Spring
847047
£7,98 Unit Price incl. VAT
15
Washer
847224
£1,58 Unit Price incl. VAT
16
Screw with washer TCIC M5x35
847048
£1,27 Unit Price incl. VAT
17
Safety washer
847225
Not Available
18
Clutch lever
847083
£32,96 Unit Price incl. VAT
19
Oil seal 12x20
847075
£5,47 Unit Price incl. VAT
20
Clutch relese shaft
CM151201
£63,37 Unit Price incl. VAT
21
Pin
847223
£3,74 Unit Price incl. VAT
22
Plate
847090
£5,69 Unit Price incl. VAT
23
Selector shaft
847236
Not Available
24
Gear lever
00H02703421
Not Available
25
Bolt
847073
Not Available
26
Spring
847069
Not Available
27
screw
847070
Not Available
28
Lever
847068
Not Available
29
Oil seal 12x20
847075
£5,47 Unit Price incl. VAT
30
Washer
847228
Not Available
31
screw 6M100X25
00002062511
Not Available
32
Washer D6
00442060002
Not Available
33
Primary gear shaft assy. 6 v.ta'
847027
£463,26 Unit Price incl. VAT
34
Roller cage
847544
£42,13 Unit Price incl. VAT
35
Bearing
847086
Not Available
36
Plate
847021
£7,25 Unit Price incl. VAT
37
screw
847210
Not Available
38
Secondary shaft cpl. 6 v.ta'
847028
£608,86 Unit Price incl. VAT
39
Gear 1A Z=34
847153
£98,47 Unit Price incl. VAT
40
Gear 2A Z=30
847157
£223,20 Unit Price incl. VAT
41
Gear 3A Z=27
847155
£223,14 Unit Price incl. VAT
42
Gear 4A Z=24
847156
£192,24 Unit Price incl. VAT
43
Washer
847549
£4,28 Unit Price incl. VAT
44
Roller cage
847211
£13,58 Unit Price incl. VAT
45
Washer
847550
Not Available
46
Safety washer
847542
£10,03 Unit Price incl. VAT
47
Washer1x16x23.5
847548
£2,33 Unit Price incl. VAT
48
Washer 1x18x23
847541
£2,44 Unit Price incl. VAT
49
Shim washer 17,1x25x0,8
847546
£5,99 Unit Price incl. VAT
50
Washer 1.2x17x28
847545
£6,67 Unit Price incl. VAT
51
Oil seal
847019
£6,05 Unit Price incl. VAT
52
Bearing
847209
£11,15 Unit Price incl. VAT
53
Gear 5A Z=23
847154
£156,40 Unit Price incl. VAT
54
Pinion Z=11
00H02813371
Not Available
56
Shift cam plate
863136
Not Available
56
Plate
00H02800421
£7,86 Unit Price incl. VAT
58
screw 4M70X10
00002041050
Not Available
60
Washer D4
00000033040
Not Available
62
Fork
847032
Not Available
63
Fork guide pin w/shank
847030
£28,02 Unit Price incl. VAT
64
Washer
847214
£11,38 Unit Price incl. VAT
65
Shift cam plate
847038
£57,14 Unit Price incl. VAT
66
Gear 6A Z=22
847158
£203,36 Unit Price incl. VAT
67
Shift cam
847081
Not Available
68
Washer
847036
£2,33 Unit Price incl. VAT
69
Piston pin 4X6
847213
Not Available
70
Bush
847547
£29,78 Unit Price incl. VAT
71
Secondary gear shaft
847159
£422,59 Unit Price incl. VAT
72
Bearing
847209
£11,15 Unit Price incl. VAT
73
Fork
847031
Not Available

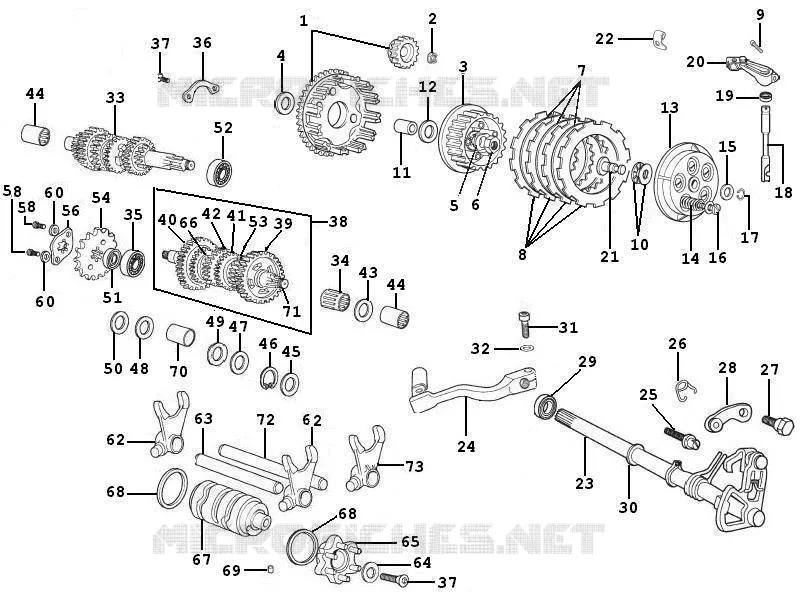

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
