Parts Catalog
Rear wheel shaft
6
Parts Diagram
Parts Catalog
Pump group-oil pan
by
Driving pulley
Rear wheel shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Driven pulley shaft
4858795
Not Available
2
Wheel axle
8347335
Not Available
3
Oil seal 38x50x7
829201
Not Available
4
Circlip
829206
£1,36 Unit Price incl. VAT
5
Radial ball bearing 15x42x13
485912
Not Available
6
Cover
8322495
Not Available
7
Screw w/ flange M8x45
487211
Not Available
8
Radial bearing 30x55x13
82659R
Not Available
9
Transmission shaft
4858915
Not Available
10
Breather
830862
£9,98 Unit Price incl. VAT
11
Hose clamp
487948
£1,27 Unit Price incl. VAT
12
Gasket
487383
Not Available
13
Radial ball bearing 15x42x13
485912
Not Available
14
Radial ball bearing 20x47x14
833701
Not Available
15
Gasket ring
82539R
Not Available
16
Circlip 25x26.9x1.2
000674
Not Available
17
screw M8x40
825758
Not Available

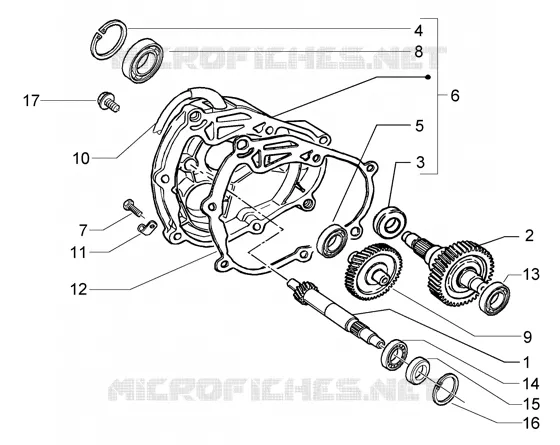

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
