1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2004
4
Trim
Granturismo L
5
Parts Catalog

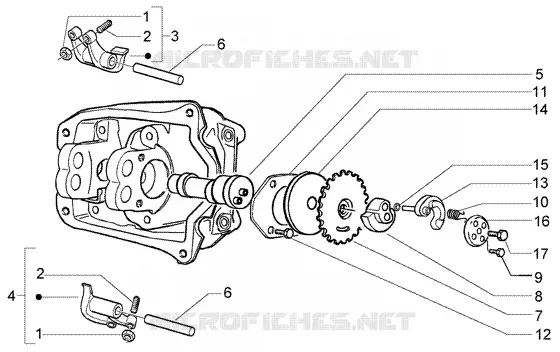

Rocker levers support
6
Parts Diagram
Parts Catalog
Head-valves
by
Oil drain valve
Rocker levers support
1
1
2
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
1
Nut
484819
£1,33 Unit Price incl. VAT
2
Screw m6x14,6
484654
Not Available
2
Adjuster screw
82817R
Not Available
3
Complete intake side rocker
4847395
£106,68 Unit Price incl. VAT
4
Rocker arm assy., exhaust
4847405
£96,98 Unit Price incl. VAT
5
Camshaft
8299365
Not Available
6
Rocker arms axis
486343
£20,62 Unit Price incl. VAT
7
Timing system gear
486336
Not Available
8
Decompressor counterweight
486331
Not Available
9
screw M6x35
414838
£1,27 Unit Price incl. VAT
10
Spring
486974
£0,66 Unit Price incl. VAT
11
Camshaft plate
833308
Not Available
12
Screw w/ flange
484123
£0,54 Unit Price incl. VAT
13
Decompression counterweight
8291395
£34,70 Unit Price incl. VAT
14
Washer
487832
Not Available
15
Gasket
487833
£1,13 Unit Price incl. VAT
16
Decompression bell
826396
Not Available
17
Hex screw M6x22
031091
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
