1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L
5
Parts Catalog
Front lights-rear lights
6
Parts Diagram
Parts Catalog
Locks
by
Electrical device-electric horn
Front lights-rear lights
1
2
3
4
5
6
6
7
8
9
10
11
12
12
13
14
15
16
17
1
Headlamp, assy
584977
Not Available
2
Self tapping screw L=35 mm
296458
£0,52 Unit Price incl. VAT
3
Lamp 12V-5W
292022
Not Available
4
Lamp H4 12V-60/55W
292723
£18,91 Unit Price incl. VAT
5
Taillight
584979
Not Available
6
Lamp 12V-5W
292022
Not Available
7
Glass lamp 12v-2,3w
581056
Not Available
8
Metric screw M6x20
259830
Not Available
9
Left rear turn indicator
584973
£22,73 Unit Price incl. VAT
9
Right rear turn indicator
584972
£22,73 Unit Price incl. VAT
10
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT
11
Lampholder
583527
Not Available
12
Self-tap screw M4,2x19
008457
Not Available
13
Number plate lamp
58497400EB
Not Available
13
Number plate lamp
5849740090
Not Available
13
Number plate lamp
58497400D9
Not Available
13
Number plate lamp
58497400BG
£23,53 Unit Price incl. VAT
13
Number plate lamp
58497400F2
Not Available
13
Number plate lamp
58497400VC
Not Available
14
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
15
Plate
CM017406
£0,95 Unit Price incl. VAT
16
Front left turn indicator
584971
£38,77 Unit Price incl. VAT
16
Front right turn indicator
584970
£38,77 Unit Price incl. VAT
17
Lamp
581904
£2,35 Unit Price incl. VAT
18
Cable harness
583841
Not Available
19
Cable harness
583812
£17,65 Unit Price incl. VAT
20
Cable harness
583864
£32,12 Unit Price incl. VAT

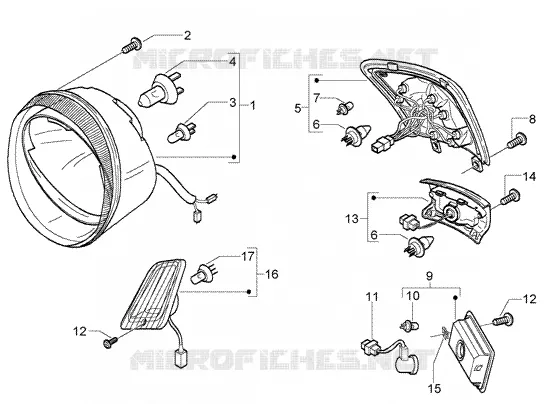

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
