Engine displacement
150
2
Model
LX
3
Year
0
4
Trim
LX 150
5
Parts Catalog
Electrical device
6
Parts Diagram
Parts Catalog
Electrical device
by
Front wheel
Electrical device
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Cable harness
639289
Not Available
2
BATTERIA PTX9-BS (12V, 8Ah)
1L004083
£73,09 Unit Price incl. VAT
2
Battery 12V-9Ah
584810
£76,72 Unit Price incl. VAT
3
Rem. control switch 12V-80A
584521
Not Available
3
Relay 12V-30A
58002R
Not Available
4
Self-tap screw
576189
Not Available
5
Washer
012528
Not Available
6
screw M5x21
015856
Not Available
7
Flat washer 4,2x12x1
013763
Not Available
8
Spring plate
CM017409
£1,27 Unit Price incl. VAT
9
Fuse 7,5A
252945
£2,26 Unit Price incl. VAT
9
Fuse 15A
290860
£2,26 Unit Price incl. VAT
10
HT coil
829671
Not Available
11
Fuse holder
580653
£11,03 Unit Price incl. VAT
12
Screw w/ flange M6x16
434541
Not Available
13
Voltage regulator
58090R
Not Available
14
Hex screw M6x22
031091
Not Available
15
Electronic ignition unit
584701
£337,19 Unit Price incl. VAT
16
Screened cap
969348
£15,46 Unit Price incl. VAT
17
Bracket
639340
£19,80 Unit Price incl. VAT
18
Screw w/ flange
484123
£0,54 Unit Price incl. VAT
19
Washer
016603
Not Available

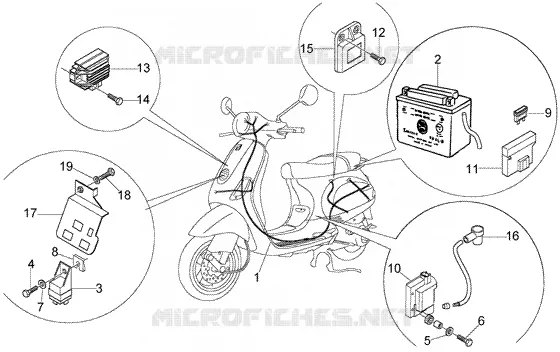

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
