1
Engine displacement
50
2
Model
LX
3
Year
0
4
Trim
LX 50 4T
5
Parts Catalog

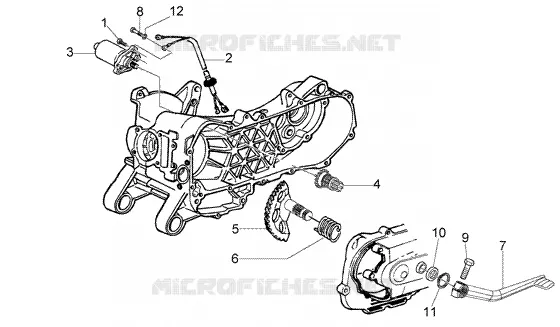

Starting motor-starter lever
6
Parts Diagram
Parts Catalog
Engine
by
Oil pump-oil pan
Starting motor-starter lever
1
2
3
4
5
6
7
8
9
10
11
12
1
Hex screw M6x22
031091
Not Available
2
Wire
969347
£45,07 Unit Price incl. VAT
3
Starter motor
96921R
£152,03 Unit Price incl. VAT
4
Complete gear unit
96922R
Not Available
5
Starting shaft
831458
£30,05 Unit Price incl. VAT
6
Starter lever return spring
289495
£8,69 Unit Price incl. VAT
7
Starter lever
969421
Not Available
8
screw
018644
Not Available
9
Screw w/ flange M6x25
414837
Not Available
10
Washer 16,3x23,8
433987
£0,60 Unit Price incl. VAT
11
Circlip
006416
Not Available
12
Flat washer 4,2x7,6x0,9
016404
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
