Parts Catalog

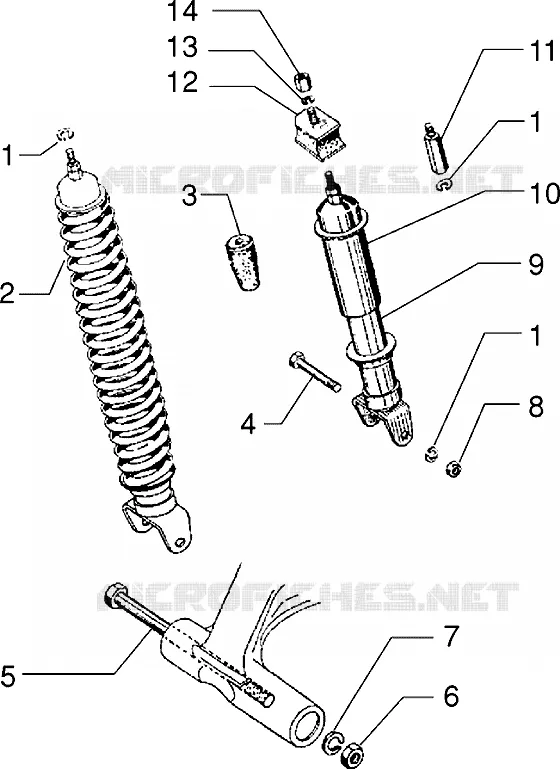

Rear shock absorber
6
Parts Diagram
Parts Catalog
Cooling-hood-main bearings
by
Caliper
Rear shock absorber
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Washer
016409
Not Available
2
Spring
179108
Not Available
3
Pad
137389
£3,16 Unit Price incl. VAT
4
screw
014689
Not Available
5
Bolt
081803
Not Available
6
Nut M14x1,5
021214
Not Available
7
Nut
016414
Not Available
8
Nut
020109
Not Available
9
Shock absorber
2466204
Not Available
10
pipe
070635
Not Available
11
Spacer
199344
£53,50 Unit Price incl. VAT
12
Maintenance
060536
Not Available
13
Spring washer 13,75x8,15x4,5
016408
Not Available
14
Nut M8
020008
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
