1
Engine displacement
150
2
Model
PX
3
Year
0
4
Trim
PX 150 E
5
Parts Catalog
Front drum
6
Parts Diagram
Parts Catalog
Front mudguard
by
Gear speed grip
Front drum
1
2
3
4

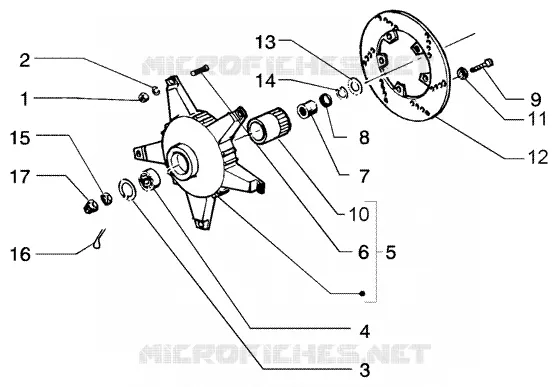

5
6
7
8
9
10
11
12
13
14
15
16
17
1
Nut M8
020008
Not Available
2
Spring washer 13,75x8,15x4,5
016408
Not Available
3
Snap ring
006635
Not Available
4
Bearing
177610
£20,51 Unit Price incl. VAT
5
Brake drum
563762
£269,35 Unit Price incl. VAT
6
Stud bolt
229796
£3,85 Unit Price incl. VAT
7
Roller cage
177442
£7,33 Unit Price incl. VAT
8
Gasket ring
177443
£3,55 Unit Price incl. VAT
9
screw
601031
Not Available
10
Chain ring
563873
£66,18 Unit Price incl. VAT
11
Spring washer 6,4x11x0,5
006966
Not Available
12
Brake disc
563246
Not Available
13
Washer
177414
£1,62 Unit Price incl. VAT
14
Circlip
006422
Not Available
15
Nut
021114
Not Available
16
Split pin
012789
Not Available
17
Cap
177609
£3,76 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
