Parts Catalog
Main cable harness
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Plates - Emblems
Main cable harness
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Frame harness
1D000277
£623,94 Unit Price incl. VAT
2
Maintenance
584002
£7,54 Unit Price incl. VAT
3
Spring for connector
641769
£5,36 Unit Price incl. VAT
4
Spring for connector
639560
£3,61 Unit Price incl. VAT
5
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
6
Engine cable harness
1D000059
£298,27 Unit Price incl. VAT
7
Fuse holder
643461
£12,08 Unit Price incl. VAT
8
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
9
Expansion plug
199190
£0,17 Unit Price incl. VAT
10
Switch
643492
£8,51 Unit Price incl. VAT
11
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
11
Non return spring
CM006912
£8,21 Unit Price incl. VAT
11
Non return spring
CM006911
£43,00 Unit Price incl. VAT
12
Spring
CM013201
£0,76 Unit Price incl. VAT
13
Molletta
B005629
£1,99 Unit Price incl. VAT
14
Engine ground lead
1D000144
£10,44 Unit Price incl. VAT
15
Tri/lobed hexagonal self-tapping screw
641204
£1,24 Unit Price incl. VAT
16
Spring washer 6,4x11,8x1
016406
Not Available
17
Flat washer 6,4x12x1
003056
Not Available
18
Spring for connector
639560
£3,61 Unit Price incl. VAT
19
Support bracket
1D000049
£10,31 Unit Price incl. VAT
20
screw M6x35
414838
£1,27 Unit Price incl. VAT

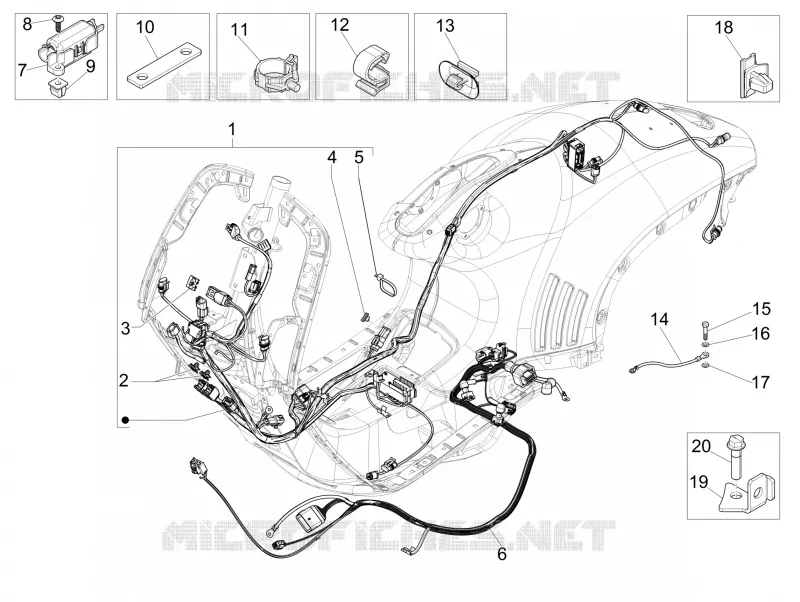

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
