Engine displacement
125
2
Model
946
3
Year
2016
4
Trim
946 RED 125 4T 3V ABS E4
5
Parts Catalog
Side cover - Spoiler
6
Parts Diagram
Parts Catalog
by
Air filter
Side cover - Spoiler
1
2
2
3
4
5
6
6
7
8
9
10
11
11
12
12
13
13
14
15
16
16
17
17
18
18
19
20
1
Left lateral bonnet
1B000307600BR
£620,92 Unit Price incl. VAT
1
Left lateral bonnet
1B0003075000DT
£620,92 Unit Price incl. VAT
1
Left lateral bonnet
1B000307500R7
£620,92 Unit Price incl. VAT
1
Left lateral bonnet
1B0003075000HF
Not Available
1
Left lateral bonnet
1B00030760090
£620,92 Unit Price incl. VAT
2
Pad
1B000888
£2,94 Unit Price incl. VAT
3
Hex socket screw M5x10
651014
£1,27 Unit Price incl. VAT
4
Bushing
1B000266
£1,63 Unit Price incl. VAT
5
Rubber washer
1B000267
£1,49 Unit Price incl. VAT
6
Expansion plug
199190
£0,17 Unit Price incl. VAT
7
Right lateral bonnet
1B000308500BR
£620,92 Unit Price incl. VAT
7
Right lateral bonnet
1B0003085000HF
Not Available
7
Right lateral bonnet
1B0003085000DT
Not Available
7
Right lateral bonnet
1B000308500R7
£620,92 Unit Price incl. VAT
7
Right lateral bonnet
1B00030850090
Not Available
8
Hex socket screw M5x10
651014
£1,27 Unit Price incl. VAT
9
Bushing
1B000266
£1,63 Unit Price incl. VAT
10
Rubber washer
1B000267
£1,49 Unit Price incl. VAT
11
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
12
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
13
Spring plate M6
254485
£1,64 Unit Price incl. VAT
14
Right spoiler rear terminal
675513
£72,38 Unit Price incl. VAT
14
Right spoiler rear terminal
67551300DT
£96,29 Unit Price incl. VAT
14
Right spoiler rear terminal
67551300BR
Not Available
14
Right spoiler rear terminal
67551300R7
Not Available
14
Right spoiler rear terminal
67551300HF
£96,29 Unit Price incl. VAT
14
Right spoiler rear terminal
6755130090
£96,29 Unit Price incl. VAT
15
Left spoiler rear terminal
67551200R7
£96,29 Unit Price incl. VAT
15
Left spoiler rear terminal
67551200BR
£96,29 Unit Price incl. VAT
15
Left spoiler rear terminal
67551200DT
£96,29 Unit Price incl. VAT
15
Left spoiler rear terminal
67551200HF
£96,29 Unit Price incl. VAT
15
Left spoiler rear terminal
675512
£72,38 Unit Price incl. VAT
15
Left spoiler rear terminal
6755120090
Not Available
16
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
17
Expansion plug
199190
£0,17 Unit Price incl. VAT
18
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
19
Right spoiler cover
675458
£15,54 Unit Price incl. VAT
20
Left spoiler cover
675457
£15,54 Unit Price incl. VAT

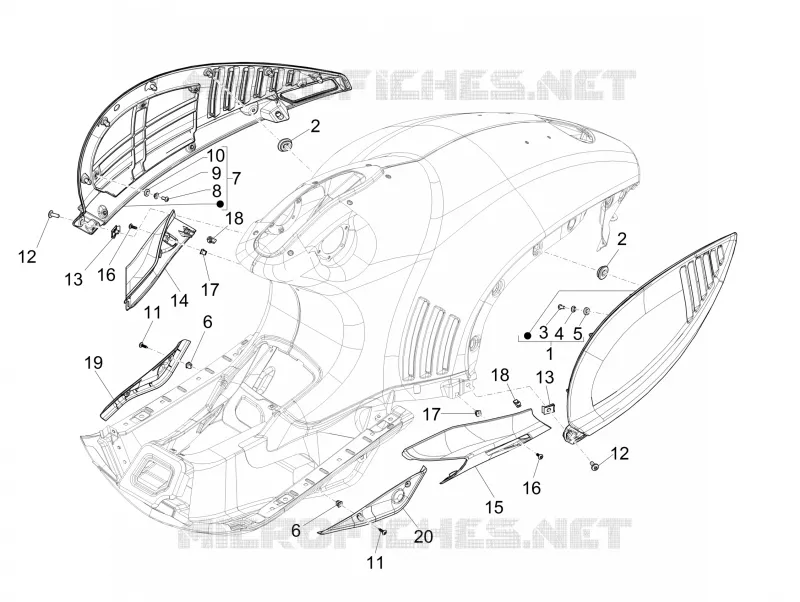

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
