Engine displacement
150
2
Model
946
3
Year
2017
4
Trim
946 150 4T 3V ABS
5
Parts Catalog

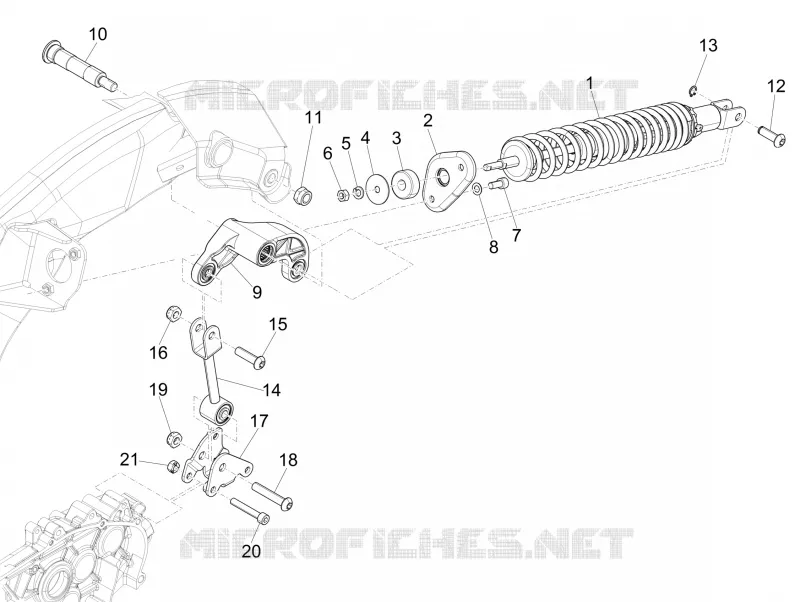

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Fuel tank
by
Main cable harness
Rear suspension - Shock absorber/s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Complete rear shock absorber
668599
£248,64 Unit Price incl. VAT
2
Shock absorber connection bracket
668934
£30,52 Unit Price incl. VAT
3
Upper buffer
178150
£2,69 Unit Price incl. VAT
4
Flat washer
267038
£1,02 Unit Price incl. VAT
5
Spring washer 13,75x8,15x4,5
016408
Not Available
6
Nut M8
021108
Not Available
7
screw
319532
£1,43 Unit Price incl. VAT
8
Spring washer
709047
£0,70 Unit Price incl. VAT
9
Gear cpl.
668614
£425,45 Unit Price incl. VAT
10
Pin
668662
£66,46 Unit Price incl. VAT
11
Self locking nut
267555
£0,47 Unit Price incl. VAT
12
Torx Screw
1C000225
£19,91 Unit Price incl. VAT
13
Ring
006409
Not Available
14
Swinging unit coupling complete strut
668656
£42,74 Unit Price incl. VAT
15
Torx Screw
669304
£3,17 Unit Price incl. VAT
16
Self locking nut M10
002440
Not Available
17
Left strut fixing bracket
1C000259
£24,43 Unit Price incl. VAT
18
Torx Screw
669305
£4,19 Unit Price incl. VAT
19
Self locking nut M10
002440
Not Available
20
Hex socket screw M8x55
872997
£12,94 Unit Price incl. VAT
21
Nut M8
020008
Not Available
