Engine displacement
150
2
Model
946
3
Year
2017
4
Trim
946 ARMANI 150 4T 3V ABS E3
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Handlebars coverages
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
1
Fuel tank
675673
£545,71 Unit Price incl. VAT
1
Fuel tank
1B000502
£545,71 Unit Price incl. VAT
2
Tank cap
1B000184
£39,90 Unit Price incl. VAT
3
Tank cover gasket
656021
£21,35 Unit Price incl. VAT
4
Fuel recovery tank
1B000259
£13,12 Unit Price incl. VAT
5
Ring nut
576546
£7,22 Unit Price incl. VAT
6
Fuel pump
1D000201
Not Available
7
Fuel pump filter
639357
£171,13 Unit Price incl. VAT
8
Gasket
576542
Not Available
9
Indicator fuel level
680123
£55,88 Unit Price incl. VAT
10
Gasket
781091
£4,46 Unit Price incl. VAT
11
Indicator lock flange
781090
£7,40 Unit Price incl. VAT
12
Flat washer Ø5,3xØ14x1
097733
Not Available
13
Stop nut M5-6H DIN 985
804457
£1,07 Unit Price incl. VAT
14
Plate
1B000427
£10,93 Unit Price incl. VAT
15
Tank breather pipe
1B000111
£49,28 Unit Price incl. VAT
16
Safety valve
576748
£44,46 Unit Price incl. VAT
17
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
18
Coupling
959591
£7,84 Unit Price incl. VAT
19
Tank breather pipe Ø5x10 L.1060
CM001432
£12,20 Unit Price incl. VAT
20
Complete fuel pipe
1B001441R
Not Available
21
Screw m6x12
031086
Not Available
22
Hex screw M6x22
031091
Not Available
23
Spring washer 6,4x11,8x1
016406
Not Available
24
Washer 6,2x18x2
013950
Not Available
25
Spring plate M6
254485
£1,64 Unit Price incl. VAT
26
Plain washer
006175
Not Available
27
Molletta
CM006910
£4,28 Unit Price incl. VAT
28
Hose clamp
675126
£6,20 Unit Price incl. VAT

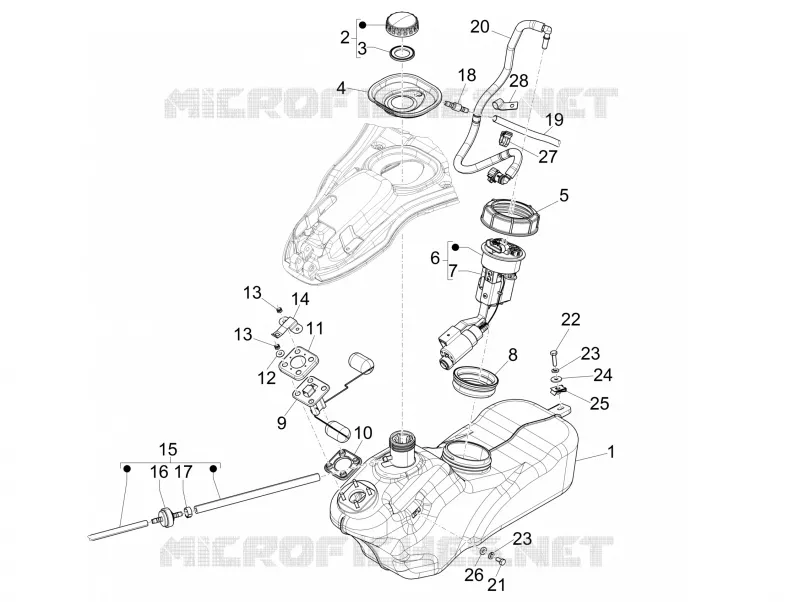

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
