1
Engine displacement
180
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon LX
5
Parts Catalog
Glove compartment
6
Parts Diagram
Parts Catalog
Bleeding system
by
Lower side panels
Glove compartment
1
2
3
4
5
7
8
9
10
11
12
13
14
16
17
18
19
20
20
20
21
21
22
23
24
25
26
27
28
28
30
30
31
31
35
36
37
1
Door
8220005037
Not Available
1
Door
8220005038
Not Available
1
Door
8220005055
Not Available
1
Door
8220005060
Not Available
1
Door
8220005090
Not Available
1
Door
8220005
Not Available
2
Name plate
5743510038
Not Available
3
Support
574809
Not Available
4
Hinge
562369
Not Available
5
Name plate
575040
Not Available
7
Nut
274141
Not Available
8
Cover
483859
£1,87 Unit Price incl. VAT
9
Counter flap
576671
Not Available
10
Self tapping screw
297498
£0,60 Unit Price incl. VAT
11
Gasket
561449
£63,19 Unit Price incl. VAT
12
Guard
296837
Not Available
13
Fairlead
270162
Not Available
14
Mat
561447
Not Available
16
Gl.comp.
5759955
Not Available
17
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
18
Metric screw M6x20
259830
Not Available
19
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
20
Washer
297029
£1,27 Unit Price incl. VAT
21
Spring plate M6
254485
£1,64 Unit Price incl. VAT
22
Plate
255437
£0,38 Unit Price incl. VAT
23
Door
575060
Not Available
24
Spring pin
017718
Not Available
25
Reflector
294771
Not Available
26
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
27
Gasket
298420
Not Available
28
Screw M6x16
272836
£1,13 Unit Price incl. VAT
30
Washer
078307
Not Available
31
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
32
Cover
574808
Not Available
33
Spring
270146
Not Available
34
Housing
574805
Not Available
35
Pin
270147
Not Available
36
Lever
575054
Not Available
37
Spring
575019
Not Available

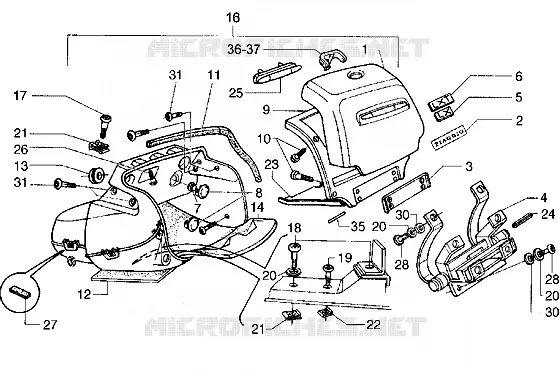

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
