Engine displacement
150
2
Model
946
3
Year
2016
4
Trim
946 ARMANI 150 4T 3V ABS E3
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Stand/s
by
Throttle body - Injector - Union pipe
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Wheel rim
1C0017915
Not Available
2
Tubeless valve
597679
£6,16 Unit Price incl. VAT
3
Rear wheel hub
598715
£204,36 Unit Price incl. VAT
4
Brake disc
668716
£141,67 Unit Price incl. VAT
5
Special cap screw
668249
£0,83 Unit Price incl. VAT
6
Self locking nut
597565
£1,00 Unit Price incl. VAT
7
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
8
Spring washer
709047
£0,70 Unit Price incl. VAT
9
Flat washer 15x8,4x1,5
003058
Not Available
10
Handlebar cover post.
1C001945
£95,59 Unit Price incl. VAT
11
Gasket ring
1C000410
£6,68 Unit Price incl. VAT
12
Sensor ABS
859792
Not Available
13
Torx Screw
880285
£1,24 Unit Price incl. VAT
14
Washer
1C000475
£1,85 Unit Price incl. VAT
15
Flat washer
669282
£2,36 Unit Price incl. VAT
16
screw M6x16
031088
Not Available
17
Plain washer 12x6,1x2
976674
£5,14 Unit Price incl. VAT
18
Nut
709116
£1,72 Unit Price incl. VAT
19
Flat washer 6,5x21
268304
£1,36 Unit Price incl. VAT
20
Adaptor
669235
£22,27 Unit Price incl. VAT
21
Sensor bracket
680263
£7,58 Unit Price incl. VAT
22
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
23
Nut hold cap
194423
Not Available
24
Nut M16x13
563728
£2,48 Unit Price incl. VAT
25
Split pin
012789
Not Available
26
Rear wheel spacer
668481
£10,26 Unit Price incl. VAT
27
Hose clamp
667156
£4,82 Unit Price incl. VAT
28
Hose clamp
667643
£4,38 Unit Price incl. VAT
29
screw
239687
£0,37 Unit Price incl. VAT
30
Plain washer 5,4x10x0,8
003055
Not Available
31
Torx Screw
669057
£1,76 Unit Price incl. VAT
32
(Michelin) Tyre 130/70-12"
1C000743
Not Available
33
Wheel hub
1C0017885
Not Available

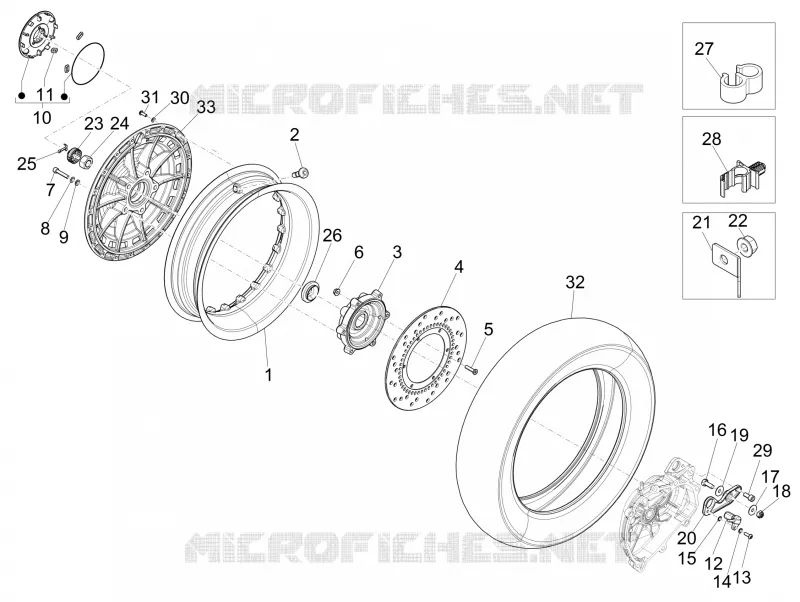

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
