1
Engine displacement
150
2
Model
946
3
Year
2016
4
Trim
946 ARMANI 150 4T 3V ABS E3
5
Parts Catalog

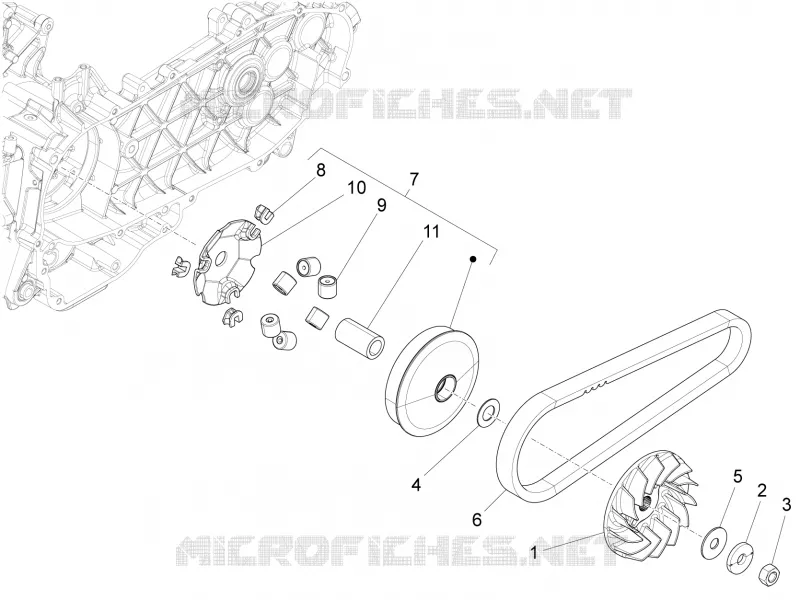

Driving pulley
6
Parts Diagram
Parts Catalog
Stand/s
by
Rear wheel
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
1
Fixed driving half pulley
876921
£27,54 Unit Price incl. VAT
2
Belleville spring
880950
£7,64 Unit Price incl. VAT
3
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT
4
Plain washer
831363
£2,08 Unit Price incl. VAT
5
Flat washer 12.1x36x2
840533
£2,30 Unit Price incl. VAT
6
V-belt
B016183
Not Available
7
Complete roller housing
CM257703
£125,05 Unit Price incl. VAT
8
Sliding block
B017219
Not Available
9
roller complete
B019236
£3,00 Unit Price incl. VAT
10
Roller contrast
842204
£14,02 Unit Price incl. VAT
11
Spacer
483889
£35,44 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
