Engine displacement
300
2
Model
GTS
3
Year
2017
4
Trim
GTS 300 ie ABS E4
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
Air filter
Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
11
1
Cyl.pist.-wrist pin assy unit
876457
£409,87 Unit Price incl. VAT
2
Piston + piston pin Cat.1
8764580001
£130,31 Unit Price incl. VAT
2
Piston + piston pin Cat.4
8764580004
£130,31 Unit Price incl. VAT
2
Piston + piston pin Cat.3
8764580003
£130,31 Unit Price incl. VAT
2
Piston + piston pin Cat.2
8764580002
£130,31 Unit Price incl. VAT
3
Compression ring Ø 75x1,5
B015159
£6,16 Unit Price incl. VAT
4
Oil scraper ring Ø 75x1,2
B015160
£6,16 Unit Price incl. VAT
5
Oil scraper ring Ø 75x2,5
B015161
£7,15 Unit Price incl. VAT
6
Snap ring
875096
£1,24 Unit Price incl. VAT
7
O-ring
B017342
£1,13 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
£14,40 Unit Price incl. VAT
9
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
10
Locating dowel
B015957
£1,00 Unit Price incl. VAT
11
O-ring
B017342
£1,13 Unit Price incl. VAT

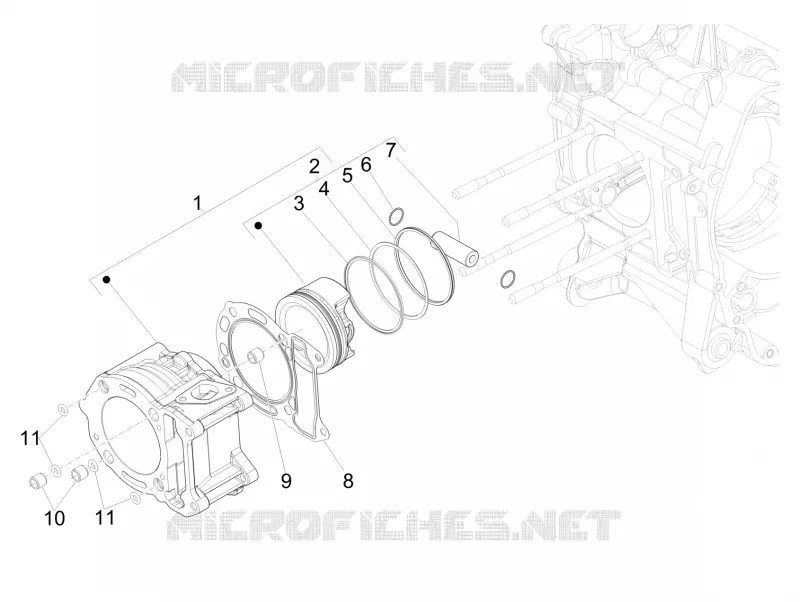

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
