1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog

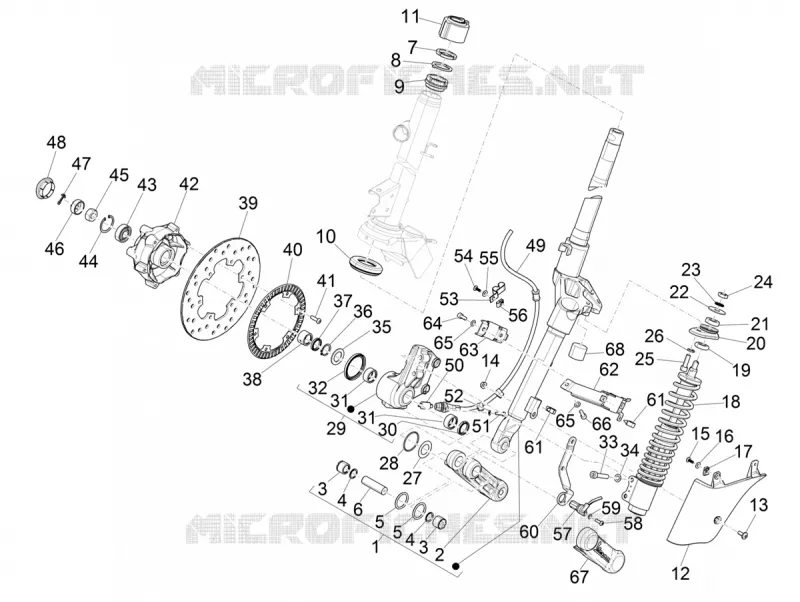

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
ABS Brake system
Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
61
62
63
64
65
65
66
67
68
1
Steering tube complete with arm
1C0025285
£443,76 Unit Price incl. VAT
2
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Steering tube ring nut
0111094
Not Available
8
Steering security plate
582787
£1,91 Unit Price incl. VAT
9
Upper thrust ring
650693
Not Available
10
Lower steering bearing
650075
Not Available
11
Collar
582828
£2,11 Unit Price incl. VAT
12
Front suspension cover
1C001153
£14,36 Unit Price incl. VAT
13
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
14
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
15
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
16
Washer
012528
Not Available
17
Spring plate
CM017410
£0,71 Unit Price incl. VAT
18
Complete front shock absorber
56452R
Not Available
19
Pad
174874
£3,66 Unit Price incl. VAT
20
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
21
Pad
174085
£2,87 Unit Price incl. VAT
22
Washer
174088
£1,62 Unit Price incl. VAT
23
Washer
012535
Not Available
24
Nut
021210
Not Available
25
screw
597150
£1,51 Unit Price incl. VAT
26
Spring washer 13,75x8,15x4,5
016408
Not Available
27
Washer
177445
£1,62 Unit Price incl. VAT
28
O-ring
177408
£1,33 Unit Price incl. VAT
29
Maintenance
597758
£184,43 Unit Price incl. VAT
30
Gasket ring
1C001969
£6,17 Unit Price incl. VAT
31
Drawn cap
177436
Not Available
32
Ring
177494
£4,73 Unit Price incl. VAT
33
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
34
Spring washer
709047
£0,70 Unit Price incl. VAT
35
Washer
177414
£1,62 Unit Price incl. VAT
36
Circlip
006422
Not Available
37
Gasket ring
177443
£3,55 Unit Price incl. VAT
38
Roller cage
177442
£7,33 Unit Price incl. VAT
39
Brake disc
56484R
£78,92 Unit Price incl. VAT
40
ABS phonic wheel
1C001127
Not Available
41
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
42
Front wheel hub
1C001222
£232,12 Unit Price incl. VAT
43
Bearing
177610
£20,51 Unit Price incl. VAT
44
Snap ring
006635
Not Available
45
Nut
021114
Not Available
46
Cap
177609
£3,76 Unit Price incl. VAT
47
Split pin
012789
Not Available
48
Cover
092517
Not Available
49
Flexible odometer transmission
1C001253
Not Available
50
Sprocket wheel odometer drive
648025
£13,07 Unit Price incl. VAT
51
screw M5x16
031058
Not Available
52
Washer Ø5,3xØ10x0,5
006975
Not Available
53
Hose clamp
666047
£3,85 Unit Price incl. VAT
54
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
55
Washer 4,5x12x1
016670
Not Available
56
Spring plate
CM017410
£0,71 Unit Price incl. VAT
57
Complete ABS sensor
1D0011175
Not Available
58
Torx Screw
880285
£1,24 Unit Price incl. VAT
59
Washer Ø5,3xØ10x0,5
006975
Not Available
60
ABS support bracket sensor
1C002989
£17,20 Unit Price incl. VAT
61
Elastic spring
231590
£0,60 Unit Price incl. VAT
62
Bracket with U.P.
1C001827
£60,55 Unit Price incl. VAT
63
Bracket
1C001828
£60,55 Unit Price incl. VAT
64
screw
239687
£0,37 Unit Price incl. VAT
65
Spring washer 12x6,4x0,5
006976
Not Available
66
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
67
Front suspension arm cover
561433
Not Available
68
Cover
601026
£7,00 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
