1
Engine displacement
125
2
Model
SPRINT
3
Year
2018
4
Trim
Sprint 125 4T 3V IGET E4 ABS
5
Parts Catalog
Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Fork/steering tube - Steering bearing unit
Brakes pipes - Calipers (ABS)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Brake caliper Heng Tong
CM068301
Not Available
2
Brake pads couple Heng Tong
647078
£48,58 Unit Price incl. VAT
3
Brake supp. plate pin
666139
£12,74 Unit Price incl. VAT
4
screw
319532
£1,43 Unit Price incl. VAT
5
Spring washer
709047
£0,70 Unit Price incl. VAT
6
ABS electro-hydraulic control unit
1C002557
£918,70 Unit Price incl. VAT
7
Control unit sup. bracket
1C000431
£28,10 Unit Price incl. VAT
8
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
9
Spring plate M6
254485
£1,64 Unit Price incl. VAT
10
screw M5x21
015856
Not Available
11
Spacer
1C000870
£2,60 Unit Price incl. VAT
12
Pad
939278
£4,45 Unit Price incl. VAT
13
Washer 5.3x10x10
006965
Not Available
14
Nut M6
020106
Not Available
15
Spring washer 12x6,4x0,5
006976
Not Available
16
ABS unit - right brake pump pipe
1C001022R
£51,22 Unit Price incl. VAT
17
Gasket
127927
£1,04 Unit Price incl. VAT
18
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
19
Front clamp ABS unit pipe
1C001023R
£37,84 Unit Price incl. VAT
19
Front clamp ABS unit pipe
1C002433
Not Available
20
Gasket
127927
£1,04 Unit Price incl. VAT
21
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
22
Wiring clip
1C000585
£3,14 Unit Price incl. VAT
23
Spring plate M6
254485
£1,64 Unit Price incl. VAT
24
Hex socket screw M6x12
274369
£0,62 Unit Price incl. VAT
25
Hose clamp
675510
£3,97 Unit Price incl. VAT

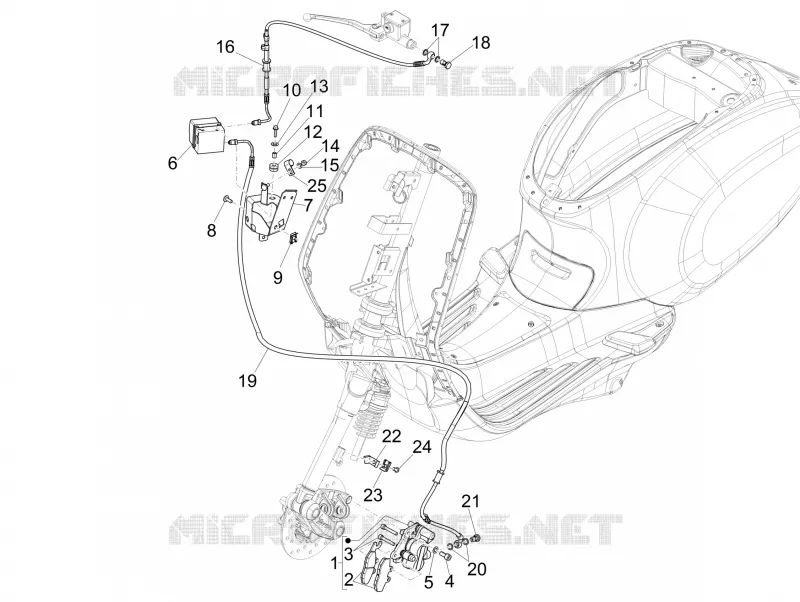

Find the detailed Brakes pipes - Calipers (ABS) GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
