1
Engine displacement
300
2
Model
MP3
3
Year
2019
4
Trim
MP3 300 HPE / 300 HPE Sport Euro 4 ABS
5
Parts Catalog

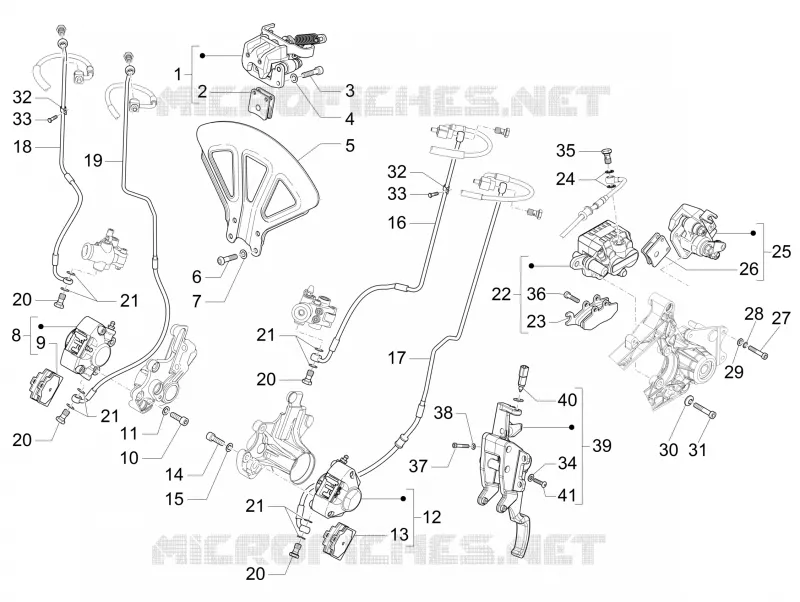

Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Head - valves
by
FLYWHEEL COVER - OIL FILTER
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
32
33
33
34
35
36
37
38
39
40
41
1
Mechanical brake pin
649090
£164,34 Unit Price incl. VAT
2
Brake pads couple
648476
£38,77 Unit Price incl. VAT
3
screw
598921
£1,06 Unit Price incl. VAT
4
Spring washer
709047
£0,70 Unit Price incl. VAT
5
Anti-tilting disc
665588
£84,37 Unit Price incl. VAT
6
Hex screw M8x30
599208
£2,42 Unit Price incl. VAT
7
Spring washer
709047
£0,70 Unit Price incl. VAT
8
Etrier frein d. HENG TONG
CM294802
£122,96 Unit Price incl. VAT
9
Brake pads couple
1C003814
Not Available
10
screw
597150
£1,51 Unit Price incl. VAT
11
Spring washer
709047
£0,70 Unit Price incl. VAT
12
Etrier frein g. HENG TONG
CM294801
£122,96 Unit Price incl. VAT
13
Brake pads couple
1C003814
Not Available
14
screw
597150
£1,51 Unit Price incl. VAT
15
Spring washer
709047
£0,70 Unit Price incl. VAT
16
Left rigid brake pipe
650453
£74,65 Unit Price incl. VAT
17
Left brake pipe
601740
Not Available
18
Right rigid brake pipe
650454
£71,99 Unit Price incl. VAT
19
RH brake hose
601742
Not Available
20
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
21
Gasket
127927
£1,04 Unit Price incl. VAT
22
Caliper (Heng Tong)
CM068315
£128,45 Unit Price incl. VAT
23
(Heng Tong) Brake pads couple
665842
£36,64 Unit Price incl. VAT
24
Gasket
127927
£1,04 Unit Price incl. VAT
25
Left parking brake pin
CM084601
£134,14 Unit Price incl. VAT
26
Brake pads couple
648476
£38,77 Unit Price incl. VAT
27
screw
319165
£1,27 Unit Price incl. VAT
28
Washer
016604
Not Available
29
Spring washer
709047
£0,70 Unit Price incl. VAT
30
Washer
012535
Not Available
31
screw
649554
£1,62 Unit Price incl. VAT
32
Fascetta con p.i.
649502
£12,94 Unit Price incl. VAT
33
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
34
Flat washer 4,2x7,6x0,9
016404
Not Available
35
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
36
Brake supp. plate pin
666139
£12,74 Unit Price incl. VAT
37
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
38
Spring washer 12x6,4x0,5
006976
Not Available
39
Complete parking lever assembly.
6494205
£202,31 Unit Price incl. VAT
40
stop Button
583575
£10,80 Unit Price incl. VAT
41
Hex socket screw M4x16
959559
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
