Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
WATERPUMP
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Fuel tank
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
1
Fuel tank
1B003312
£225,73 Unit Price incl. VAT
2
Hex screw M6x20
018639
Not Available
3
screw M6x35
414838
£1,27 Unit Price incl. VAT
4
Spring washer 6,4x11,8x1
016406
Not Available
5
Flat washer 16x6,5x1,5
013880
Not Available
6
Spacer
623162
£3,91 Unit Price incl. VAT
7
Spring plate M6
254485
£1,64 Unit Price incl. VAT
8
Fuel tank gasket
1B004806
£2,27 Unit Price incl. VAT
9
Plug
656022
£37,18 Unit Price incl. VAT
10
Tank cover gasket
656021
£21,35 Unit Price incl. VAT
11
Indicator fuel level
CM025723
£111,17 Unit Price incl. VAT
12
Fuel pump
642888
£369,95 Unit Price incl. VAT
13
Flange
1B003873
£2,96 Unit Price incl. VAT
14
Gasket
1B002841
£17,94 Unit Price incl. VAT
15
Self locking nut M5
241937
Not Available
16
Fuel pump bracket
1B004048
£1,36 Unit Price incl. VAT
17
Stop nut M5-6H DIN 985
804457
£1,07 Unit Price incl. VAT
18
Complete fuel pipe
1B003568R
£67,13 Unit Price incl. VAT
19
Hose clamp
1B001615
£1,36 Unit Price incl. VAT
20
Notched washer 6,6x11x0
012533
Not Available
21
Self locking nut
012138
Not Available
22
Wiring clip
1B004489
£4,96 Unit Price incl. VAT
23
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
24
Reniflard complet
1B006213
£65,42 Unit Price incl. VAT
25
Safety valve
576748
£44,46 Unit Price incl. VAT
26
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
27
Hose clamp
CM002908
£1,27 Unit Price incl. VAT
28
Reniflard complet
1B006214
£14,44 Unit Price incl. VAT
29
Raccord à dépress.
833658
£9,83 Unit Price incl. VAT
30
Hose clamp
CM002904
£0,54 Unit Price incl. VAT
31
Hose clamp
CM002904
£0,54 Unit Price incl. VAT
32
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
33
Spring
CM013201
£0,76 Unit Price incl. VAT
34
Support clamp
1B003527
£6,70 Unit Price incl. VAT
35
Stop nut M5-6H DIN 985
804457
£1,07 Unit Price incl. VAT
36
Plain washer 5,4x10x0,8
003055
Not Available
37
Non return spring
CM006911
£43,00 Unit Price incl. VAT
38
Plugs spring
641599
£3,08 Unit Price incl. VAT
39
Plugs spring
1D000129
£1,57 Unit Price incl. VAT
40
Wiring clip
1D001143
£1,24 Unit Price incl. VAT
41
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT

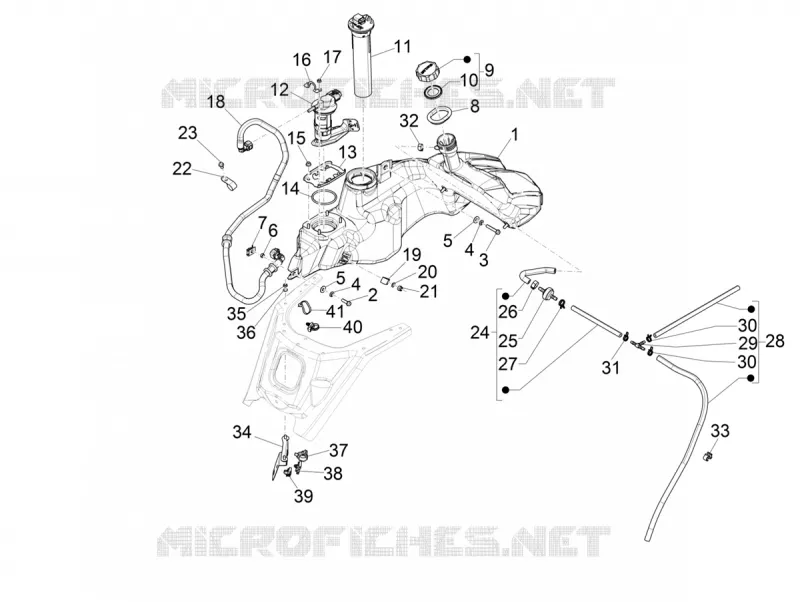

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
