Parts Catalog
Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
Oil pump
by
Front shield
Brakes pipes - Calipers (ABS)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
15
15
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
ABS electro-hydraulic control unit
1C002747
Not Available
2
Fixture rod
1C002710
£12,82 Unit Price incl. VAT
3
Nut
969224
£0,16 Unit Price incl. VAT
4
Hex screw M6x20
018639
Not Available
5
Spacer
1C000870
£2,60 Unit Price incl. VAT
6
Pad
939278
£4,45 Unit Price incl. VAT
7
Bracket with up
649635
£14,03 Unit Price incl. VAT
8
Screw M6x16
272836
£1,13 Unit Price incl. VAT
9
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
10
Pince frein avant
CM294407
£162,29 Unit Price incl. VAT
11
Brake pads couple
668021
£75,14 Unit Price incl. VAT
12
Brake supp. plate pin
666139
£12,74 Unit Price incl. VAT
13
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
14
Spring washer
709047
£0,70 Unit Price incl. VAT
15
Gasket
127927
£1,04 Unit Price incl. VAT
16
Special screw
1C002059R
Not Available
17
Etrier de frein Heng Tong
CM294803
£117,98 Unit Price incl. VAT
18
Rear Brake pads couple.
647161
£24,91 Unit Price incl. VAT
19
screw
319532
£1,43 Unit Price incl. VAT
20
Spring washer
709047
£0,70 Unit Price incl. VAT
21
Flat washer 15x8,4x1,5
003058
Not Available
22
Tuyau maître-cylindre de frein D-unité ABS
1C003409
Not Available
23
LH brake pump - ABS unit pipe
1C002755
Not Available
24
Tuyau de frein unité ABS-étrier de frein avant
1C003699
£53,69 Unit Price incl. VAT
25
Rear brake - junction - ABS unit pip
1C002749
Not Available
26
Rear brake pipe
1C002323
Not Available
27
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
28
Hose clamp
298729
£1,24 Unit Price incl. VAT
29
Flat washer 8,2x17x2,5
828961
£0,52 Unit Price incl. VAT
30
Non return spring L=23
CM006908
£4,60 Unit Price incl. VAT

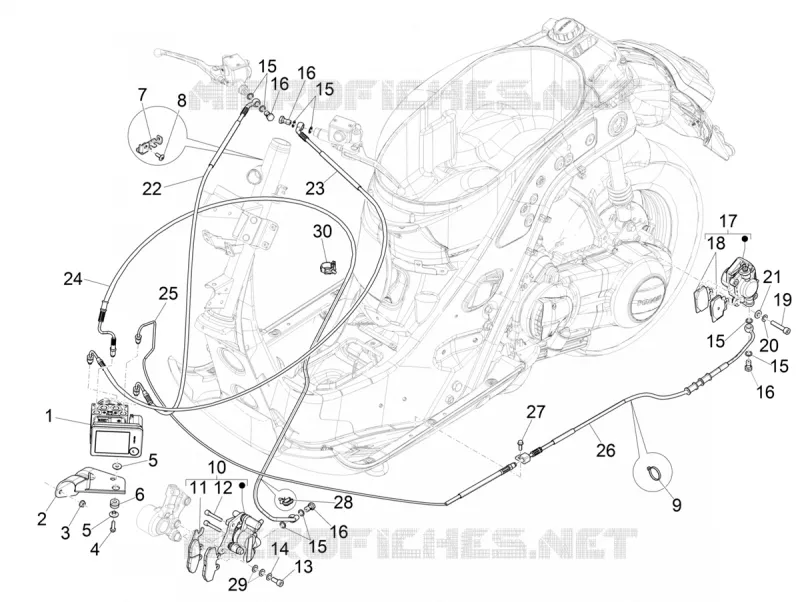

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
