1
Engine displacement
300
2
Model
GTV
3
Year
2019
4
Trim
GTV 300 HPE SEI GIORNI ie Euro 4 ABS
5
Parts Catalog

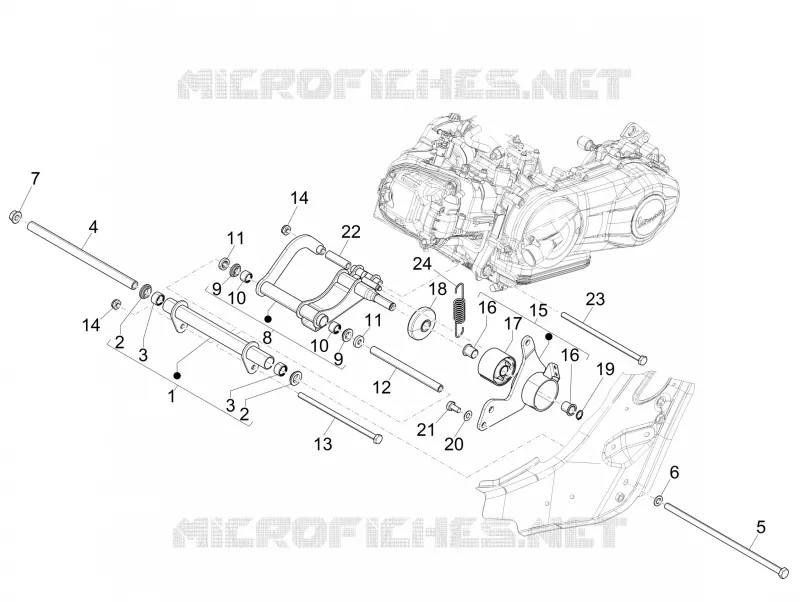

Swinging arm
6
Parts Diagram
Parts Catalog
Reduction unit
by
Head - valves
Swinging arm
1
2
2
3
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
14
15
16
16
17
18
19
20
21
22
23
24
1
Chassis side swinging arm
56474R
Not Available
2
Bush
598917
£1,36 Unit Price incl. VAT
3
Roller cage
600161
£6,83 Unit Price incl. VAT
4
Spacer 290.00 mm
597857
£29,51 Unit Price incl. VAT
5
Hex socket screw M12x324
597914
£20,15 Unit Price incl. VAT
6
Washer
266845
£0,88 Unit Price incl. VAT
7
Nut M12
271740
£2,20 Unit Price incl. VAT
8
Bras oscillant côté moteur complet
1C0025559
£232,44 Unit Price incl. VAT
9
Roller cage
56127R
£9,07 Unit Price incl. VAT
10
Bush
597317
£1,84 Unit Price incl. VAT
11
Spacer
650755
£17,92 Unit Price incl. VAT
12
Spacer 189.00 mm
CM067806
£19,39 Unit Price incl. VAT
13
Hex socket screw M10x215
271779
£15,49 Unit Price incl. VAT
14
Self locking nut M10
002440
Not Available
15
Bride de support silentbloc
1C002894
£125,03 Unit Price incl. VAT
16
Bush
273460
£0,98 Unit Price incl. VAT
17
Silent-block
272750
£44,05 Unit Price incl. VAT
18
Silent-block
599250
£15,38 Unit Price incl. VAT
19
Circlip
006416
Not Available
20
Washer
012535
Not Available
21
Bolt
031153
Not Available
22
Spacer
599077
£7,64 Unit Price incl. VAT
23
screw M10x220
598237
£15,49 Unit Price incl. VAT
24
Spring
599059
£5,76 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
