1
Engine displacement
125
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 125 4T ie Euro 4 ABS
5
Parts Catalog
TAIL LIGHTS - INDICATORS
6
Parts Diagram
Parts Catalog
LOCKS
by
Cdi magneto assy

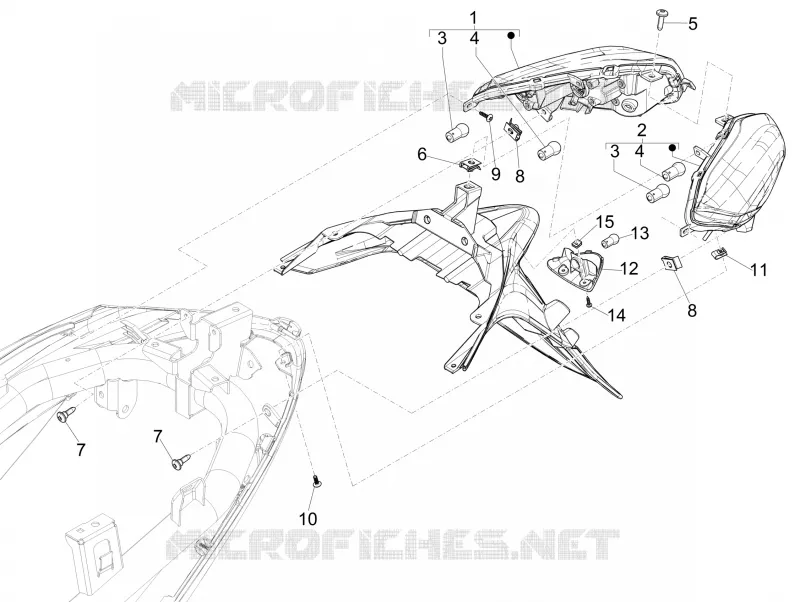

TAIL LIGHTS - INDICATORS
1
2
3
3
4
4
5
6
7
7
8
8
9
10
11
12
13
14
15
1
Feu arrière droit avec clignotant
1D001234
£114,35 Unit Price incl. VAT
2
Feu arrière gauche avec clignotant
1D001118
£126,11 Unit Price incl. VAT
3
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT
4
Lamp 12V-16W
638536
£6,34 Unit Price incl. VAT
5
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
7
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
8
Spring plate M6
254485
£1,64 Unit Price incl. VAT
9
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
10
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
11
Spring plate
CM017410
£0,71 Unit Price incl. VAT
12
Number plate lamp
1D0018520000C
Not Available
13
12V-5W bulb
2920225
£2,70 Unit Price incl. VAT
14
Self tapping screw
297498
£0,60 Unit Price incl. VAT
15
Spring plate
CM017403
£0,90 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
