1
Engine displacement
125
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 125 4T ie Euro 4 ABS
5
Parts Catalog
CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Oil pump

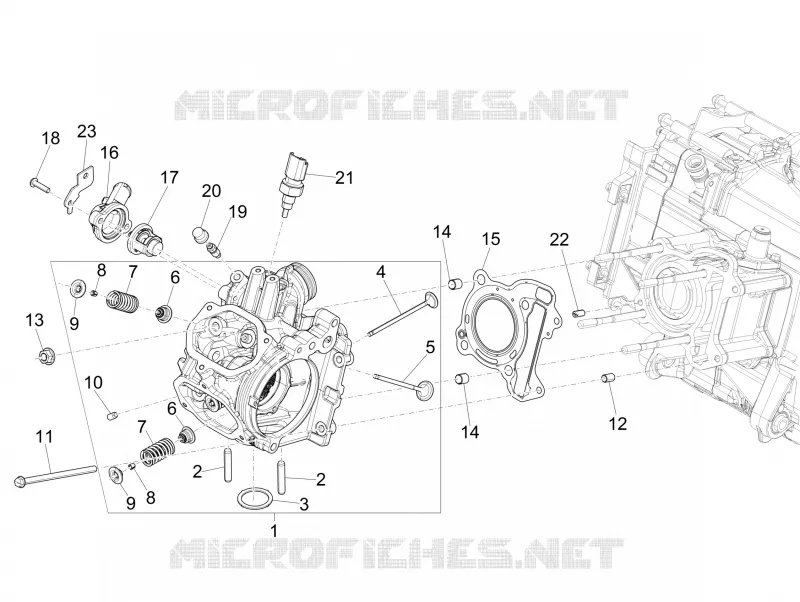

CYLINDER HEAD - VALVES
1
2
3
4
5
6
6
7
8
8
9
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
1
Cylinder head assembly
1A003463
£406,31 Unit Price incl. VAT
2
Stud bolt M7
435629
£1,87 Unit Price incl. VAT
3
Big end-silencer gasket
1A001528
£4,26 Unit Price incl. VAT
4
Exaust valve
1A000857
£74,62 Unit Price incl. VAT
5
Valve, in
1A001435
£40,31 Unit Price incl. VAT
6
Cup
843307
£9,58 Unit Price incl. VAT
7
Valve spring
1A001651
£5,93 Unit Price incl. VAT
8
Half-cone
B015484
£1,10 Unit Price incl. VAT
9
Upper cap
B013833
£2,84 Unit Price incl. VAT
10
Plug M6x10
842360
£2,20 Unit Price incl. VAT
11
screw TEF M6x110
1A000316
Not Available
12
Locating dowel
B015951
Not Available
13
Flanged nut M10x1,25
B015971
Not Available
14
Locating dowel
B015969
Not Available
15
Cylinder head gasket
1A001184
Not Available
15
Cylinder head gasket
1A001006
Not Available
16
Thermostat cover
1A002603
£58,50 Unit Price incl. VAT
17
Thermostat
82831R
Not Available
18
Torx Screw M5x20
1A004456
£1,82 Unit Price incl. VAT
19
Bleed screw
430045
£1,60 Unit Price incl. VAT
20
Bleed valve cap
063435
Not Available
21
Temperature gauge
640485
Not Available
22
Calibrated nozzle
1A001364
£4,34 Unit Price incl. VAT
23
Plaque support câble
1A005678
£15,29 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
