1
Engine displacement
150
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 150 4T Euro 5
5
Parts Catalog

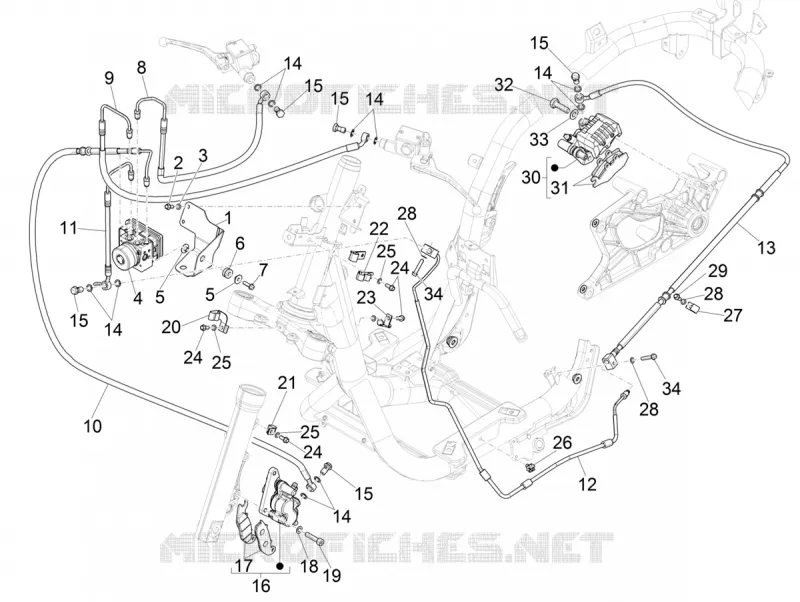

Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
WATERPUMP
by
Cylinder head cover
Brakes pipes - Calipers (ABS)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
14
14
14
15
15
15
15
15
16
16
17
18
19
19
20
21
22
23
24
24
24
25
25
25
26
27
28
28
28
29
30
30
31
32
33
34
34
1
Bride de support ABS
1C001657
£84,37 Unit Price incl. VAT
2
Screw w/ flange M6x14
874554
£2,32 Unit Price incl. VAT
3
Spring washer 6,4x11x0,5
006966
Not Available
4
Centrale ABS
1C005747
£746,70 Unit Price incl. VAT
5
Spacer
1C000870
£2,60 Unit Price incl. VAT
6
Pad
939278
£4,45 Unit Price incl. VAT
7
Hex screw M6x20
018639
Not Available
8
Tuyau maître-cylindre de frein D-unité ABS
1C004604
£82,31 Unit Price incl. VAT
9
Tuyau maître-cylindre de frein G-unité ABS
1C004605
£82,31 Unit Price incl. VAT
10
Tuyau unité ABS étrier avant
1C002056
£62,51 Unit Price incl. VAT
11
Tuyau unité ABS étrier avant
1C002055
£179,83 Unit Price incl. VAT
12
Tuyau rigide frein arrière
1C001407
£227,68 Unit Price incl. VAT
13
Durit de frein étrier arr.
1C005290
£63,31 Unit Price incl. VAT
14
Gasket
127927
£1,04 Unit Price incl. VAT
15
Special screw
1C002059R
Not Available
16
Pince frein avant
CM256504
£238,72 Unit Price incl. VAT
16
Pince frein avant
CM256502
£215,76 Unit Price incl. VAT
17
Brake pads couple
1C000760
£30,18 Unit Price incl. VAT
18
Spring washer
709047
£0,70 Unit Price incl. VAT
19
screw
598921
£1,06 Unit Price incl. VAT
20
Collier
1C002008
£6,80 Unit Price incl. VAT
21
Hose clamp
1C001420
£7,32 Unit Price incl. VAT
22
Collier
1C002078
£13,85 Unit Price incl. VAT
23
Collier
1C002009
£6,37 Unit Price incl. VAT
24
Screw w/ flange M6x14
874554
£2,32 Unit Price incl. VAT
25
Spring washer 6,4x11x0,5
006966
Not Available
26
Spring
179013
£5,17 Unit Price incl. VAT
27
Hose clamp
675510
£3,97 Unit Price incl. VAT
28
Spring washer 6,4x11x0,5
006966
Not Available
29
Screw w/ flange M6x14
874554
£2,32 Unit Price incl. VAT
30
Etrier frein d.
CM294412
£232,75 Unit Price incl. VAT
30
Etrier frein d.
CM294408
£250,22 Unit Price incl. VAT
31
Brake pads kit
647079
£30,66 Unit Price incl. VAT
32
Vis M10x1,25x35
1C004086
£1,60 Unit Price incl. VAT
33
Washer
012535
Not Available
34
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
