1
Engine displacement
150
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 150 4T ie Euro 3 - Euro 4 ABS
5
Parts Catalog

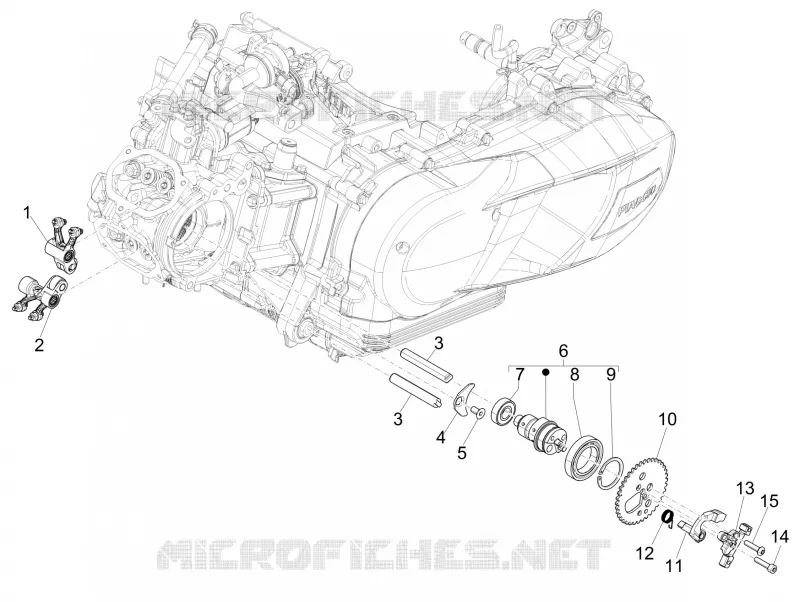

Rocking levers support unit
6
Parts Diagram
Parts Catalog
SWITCHES
by
Driven pulley
Rocking levers support unit
1
2
3
3
4
5
6
6
7
8
9
10
11
11
12
13
14
15
1
Complete intake side rocker
1A002807
£94,79 Unit Price incl. VAT
2
Complete exhaust side rocker
1A002809
£94,79 Unit Price incl. VAT
3
Rocker arms axis
1A004376
£14,34 Unit Price incl. VAT
4
Camshaft plate
1A004332
£20,32 Unit Price incl. VAT
5
Screw M6x12
1A000325
Not Available
6
Camshaft cpl. "B"
1A0041230B
£107,26 Unit Price incl. VAT
6
Camshaft cpl. "A"
1A0041230A
£107,26 Unit Price incl. VAT
7
Radial bearing
B017362
£9,49 Unit Price incl. VAT
8
Radial bearing
879541
Not Available
9
Circlip
1A004144
£13,13 Unit Price incl. VAT
10
Timing system gear
1A004147
£12,00 Unit Price incl. VAT
11
Decompression counterweight "A"
CM2773015
£22,68 Unit Price incl. VAT
11
Decompression counterweight "B"
CM2773025
£25,93 Unit Price incl. VAT
12
Decompression spring
1A006039
£4,81 Unit Price incl. VAT
13
Driving support
1A003476
Not Available
14
Special cap screw torx
1A004149
£2,12 Unit Price incl. VAT
15
Torx Screw
1A004148
£2,12 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
