Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Cooling system
6

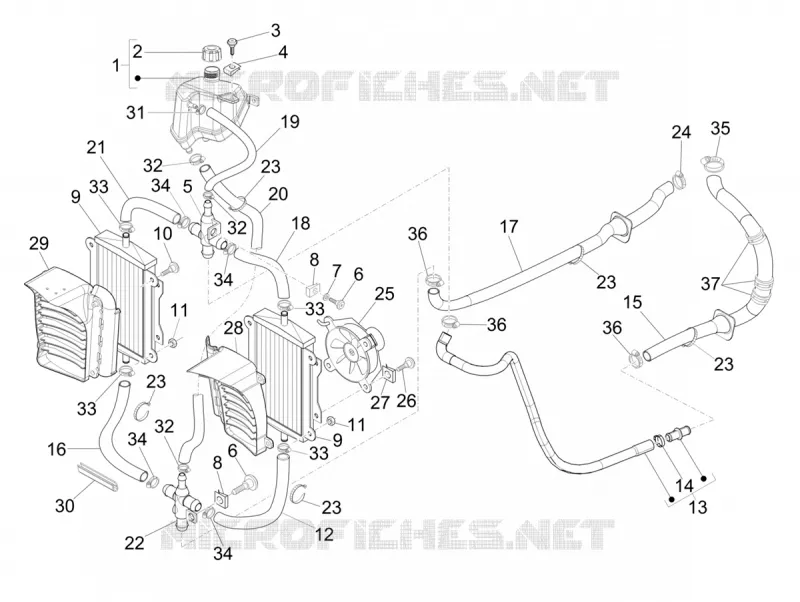

Parts Diagram
Parts Catalog
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Cooling system
1
2
3
4
5
6
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
23
23
23
23
24
25
26
27
28
29
30
31
32
32
32
33
33
33
33
34
34
34
34
35
36
36
36
37
1
Réservoir
657111
Not Available
2
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
3
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Joint
577195
£8,92 Unit Price incl. VAT
6
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
7
Spring washer
709047
£0,70 Unit Price incl. VAT
8
Spring plate M6
254485
£1,64 Unit Price incl. VAT
9
Water cooler
577183
£280,33 Unit Price incl. VAT
10
Self tapping screw 4,2x16
CM178606
£9,08 Unit Price incl. VAT
11
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
12
Lower joint-left radiator connection pipe
57313R
£20,33 Unit Price incl. VAT
13
Tuyau de connexion de raccord supérieur
1B003727
£49,98 Unit Price incl. VAT
14
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
15
Head coupling tube
653501
£52,40 Unit Price incl. VAT
16
Lower joint-right radiator connection pipe
577201
£20,53 Unit Price incl. VAT
17
Lower joint pipe
656437
£47,92 Unit Price incl. VAT
18
Hose radiator LH-upper joint
1B003454
£13,08 Unit Price incl. VAT
19
Hose coolant tank-upper joint
1B003456
£20,29 Unit Price incl. VAT
20
pipe
57314R
£21,06 Unit Price incl. VAT
21
Hose radiator RH-upper side
1B003455
£13,08 Unit Price incl. VAT
22
Joint for water pipes
656449
£16,22 Unit Price incl. VAT
23
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
24
Hose clamp
675874
Not Available
25
Fan engine
584669
£182,66 Unit Price incl. VAT
26
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
27
Spring plate M6
254485
£1,64 Unit Price incl. VAT
28
Left air duct
577187
£14,29 Unit Price incl. VAT
29
Right air duct
622839
£14,92 Unit Price incl. VAT
30
Guard
CM077703
£4,34 Unit Price incl. VAT
31
Hose clamp
CM001902
Not Available
32
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
33
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
34
Hose clamp
CM001907
£1,67 Unit Price incl. VAT
35
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
36
Hose clamp
CM001915
£1,99 Unit Price incl. VAT
37
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
