1
Engine displacement
300
2
Model
GTS
3
Year
2022
4
Trim
GTS 300 Super HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog

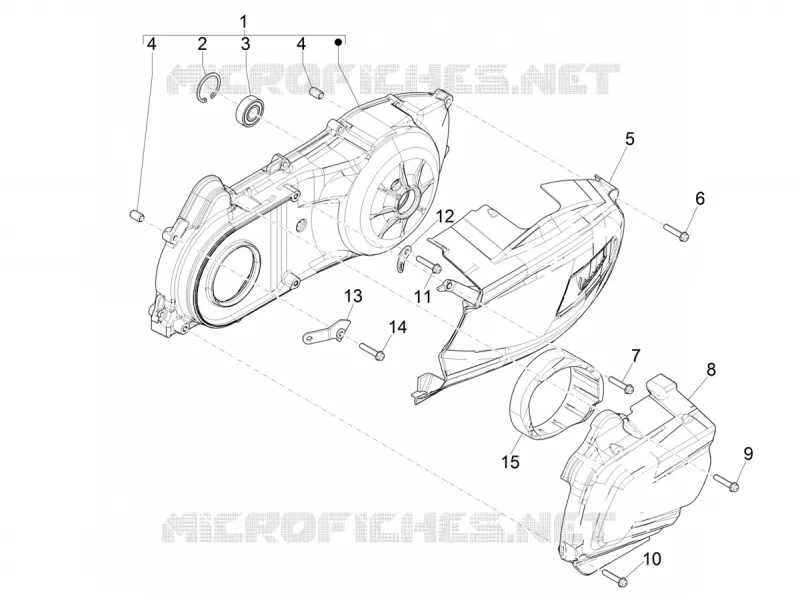

Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
CYLINDER HEAD - VALVES
Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
1
Transmission cover with U.P.
8768835
£209,58 Unit Price incl. VAT
2
Snap ring
006635
Not Available
3
Radial bearing 15x35x11
4789853
£5,38 Unit Price incl. VAT
4
Pin d.9,5 h=15
B015956
£0,74 Unit Price incl. VAT
5
Couvercle insonorisant
1A014720
£108,72 Unit Price incl. VAT
6
Vis bride
874549
£2,48 Unit Price incl. VAT
7
screw M6x35
414838
£1,27 Unit Price incl. VAT
8
Protection refroidissement
1A014961
£27,59 Unit Price incl. VAT
9
screw M6x35
414838
£1,27 Unit Price incl. VAT
10
Vis bride
874549
£2,48 Unit Price incl. VAT
11
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
12
Hose clamp
844964
£1,99 Unit Price incl. VAT
13
Bracket with U.P.
877790
£15,82 Unit Price incl. VAT
14
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
15
Filtre air
1A011977
£7,09 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
