Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
FLYWHEEL COVER - OIL FILTER

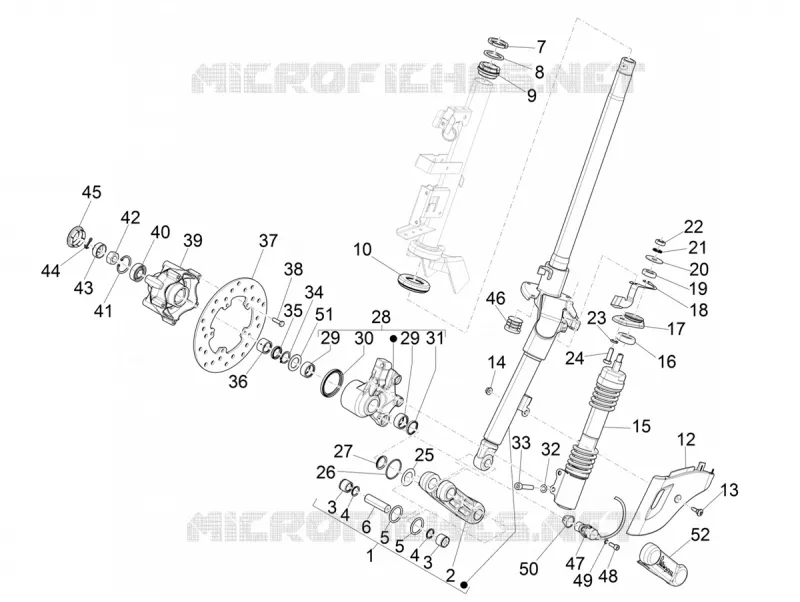

Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
5
6
7
8
9
10
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
48
49
50
51
52
1
Arm complete steering tube
1C0003975
£362,77 Unit Price incl. VAT
2
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Steering tube ring nut
0111094
Not Available
8
Washer of the steering
0037514
Not Available
9
Upper thrust ring
65069345
£19,51 Unit Price incl. VAT
10
Lower steering bearing
65007545
£28,31 Unit Price incl. VAT
12
Front suspension cover
1C001165
£9,54 Unit Price incl. VAT
13
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
14
Nut
969224
£0,16 Unit Price incl. VAT
15
Amortisseur avant
1C004068R
£193,84 Unit Price incl. VAT
15
Amortisseur avant
1C004075R
£193,84 Unit Price incl. VAT
16
Pad
174874
£3,66 Unit Price incl. VAT
17
Console de fixation amortisseur
1C004308
£12,85 Unit Price incl. VAT
18
Brake pipe support bracket
1C003390
£13,90 Unit Price incl. VAT
19
Pad
174085
£2,87 Unit Price incl. VAT
20
Washer
174088
£1,62 Unit Price incl. VAT
21
Washer
012535
Not Available
22
Nut
021210
Not Available
23
Spring washer 13,75x8,15x4,5
016408
Not Available
24
screw
031120
Not Available
25
Washer
177445
£1,62 Unit Price incl. VAT
26
O-ring
177408
£1,33 Unit Price incl. VAT
27
Ring
177521
£1,62 Unit Price incl. VAT
28
Pin and shock absorber support
1C0019705
£38,93 Unit Price incl. VAT
29
Drawn cap
177436
Not Available
30
Ring
177494
£4,73 Unit Price incl. VAT
31
Gasket ring
1C001969
£6,17 Unit Price incl. VAT
32
Spring washer
709047
£0,70 Unit Price incl. VAT
33
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
34
Washer
177414
£1,62 Unit Price incl. VAT
35
Gasket ring
177443
£3,55 Unit Price incl. VAT
36
Roller cage
177442
£7,33 Unit Price incl. VAT
37
Brake disc
56395R
£61,37 Unit Price incl. VAT
38
Hex screw
1C000291
£0,83 Unit Price incl. VAT
39
Moyeu de roue avant
1C0003836
Not Available
40
Bearing
649910
£16,61 Unit Price incl. VAT
41
Snap ring
006635
Not Available
42
Nut
021114
Not Available
43
Cap
177609
£3,76 Unit Price incl. VAT
44
Split pin
012789
Not Available
45
Cover
1C000523
£9,90 Unit Price incl. VAT
46
Cover
601026
£7,00 Unit Price incl. VAT
47
Speed sensor
1D0007655
£116,89 Unit Price incl. VAT
47
Capteur de vitesse
1D000074
Not Available
48
Hex socket screw M6x20
709674
£1,27 Unit Price incl. VAT
49
Spring washer 12x6,4x0,5
006976
Not Available
50
Flat washer
668780
£4,99 Unit Price incl. VAT
51
Circlip
006422
Not Available
52
Front suspension arm cover
561433
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
