CYLINDER HEAD - VALVES for MP3 MAXI 400 HPE E5+ from 2024

Free shipping for all orders to United Kingdom over £150! See conditions.

CYLINDER HEAD - VALVES

1

Culasse complète

1A025603

£436,91 Unit Price incl. VAT

2

Exaust valve

880602

£51,20 Unit Price incl. VAT

3

Valve, in

880601

£20,71 Unit Price incl. VAT

4

Lower cap

878859

£3,78 Unit Price incl. VAT

5

Valve gasket ring

436438

£11,03 Unit Price incl. VAT

6

Valve spring

878860

£6,26 Unit Price incl. VAT

7

Upper cap

879813

£4,55 Unit Price incl. VAT

8

Valve half-cone

285846

£1,98 Unit Price incl. VAT

9

Plug M6x10

842360

£2,20 Unit Price incl. VAT

10

Exhaust pipe gasket

879662

£2,90 Unit Price incl. VAT

11

Stud bolt

1A003632R

£2,35 Unit Price incl. VAT

12

Calibrated pad 3,40 mm

CM163221

£8,33 Unit Price incl. VAT

12

Calibrated pad 3,00 mm

CM163213

£7,40 Unit Price incl. VAT

12

Calibrated pad 2,75 mm

CM163208

£7,22 Unit Price incl. VAT

12

Calibrated pad 2,85 mm

CM163210

£7,38 Unit Price incl. VAT

12

Calibrated pad 2,90 mm

CM163211

£7,39 Unit Price incl. VAT

12

Calibrated pad 2,65 mm

CM163206

£7,32 Unit Price incl. VAT

12

Calibrated pad 3,05 mm

CM163214

£7,39 Unit Price incl. VAT

12

Calibrated pad 2,45 mm

CM163202

£8,51 Unit Price incl. VAT

12

Calibrated pad 3,30 mm

CM163219

£8,33 Unit Price incl. VAT

12

Calibrated pad 3,25 mm

CM163218

£8,39 Unit Price incl. VAT

12

Calibrated pad 2,55 mm

CM163204

£8,33 Unit Price incl. VAT

12

Calibrated pad 3,35 mm

CM163220

£8,39 Unit Price incl. VAT

12

Calibrated pad 2,70 mm

CM163207

£7,34 Unit Price incl. VAT

12

Calibrated pad 2,95 mm

CM163212

£7,39 Unit Price incl. VAT

12

Calibrated pad 2,50 mm

CM163203

£8,51 Unit Price incl. VAT

12

Calibrated pad 2,60 mm

CM163205

£8,23 Unit Price incl. VAT

12

Calibrated pad 2,80 mm

CM163209

£7,30 Unit Price incl. VAT

12

Calibrated pad 3,20 mm

CM163217

£8,41 Unit Price incl. VAT

12

Calibrated pad 3,10 mm

CM163215

£7,39 Unit Price incl. VAT

12

Calibrated pad 2,40 mm

CM163201

£8,46 Unit Price incl. VAT

12

Calibrated pad 3,15 mm

CM163216

£8,51 Unit Price incl. VAT

13

Vis bride

1A015189

£2,38 Unit Price incl. VAT

14

Rondelle plate

1A015267

£1,69 Unit Price incl. VAT

15

Écrou hexagonal haut

1A015269

£5,09 Unit Price incl. VAT

16

Écrou

1A015268

£3,38 Unit Price incl. VAT

17

Couvercle thermostat

1A018123

£22,46 Unit Price incl. VAT

18

Bleed screw

430045

£1,60 Unit Price incl. VAT

19

Bleed valve cap

063435

Not Available

20

Torx Screw M5x20

B016808

£1,27 Unit Price incl. VAT

21

Plaque de sonde lambda

1A018542

£4,40 Unit Price incl. VAT

22

Thermostat

82831R5

£69,52 Unit Price incl. VAT

23

Thermostat cover gasket

1A018154

£2,95 Unit Price incl. VAT

24

Bulbe de température d’eau

1A023021R

£39,46 Unit Price incl. VAT

25

Joint cylindre/culasse

1A013230

£13,97 Unit Price incl. VAT

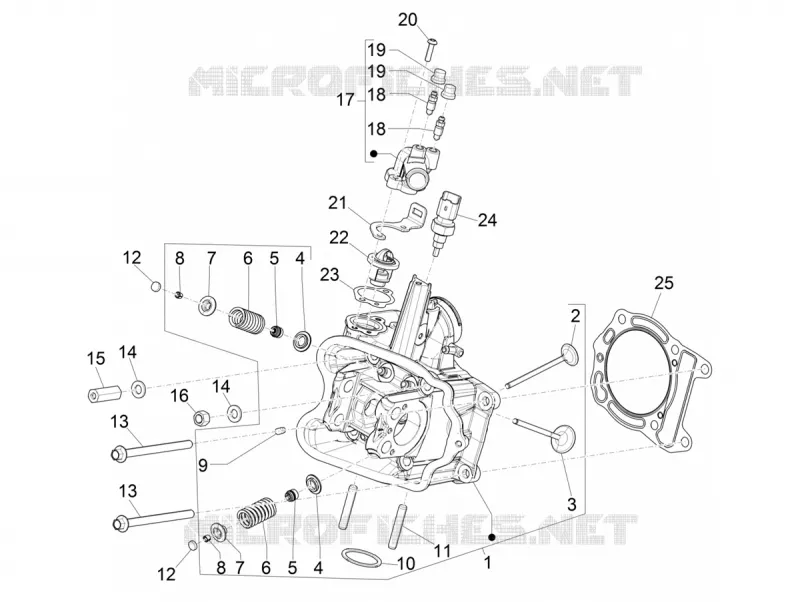

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
