1
Engine displacement
50
2
Model
PRIMAVERA
3
Year
2023
4
Trim
Vespa Primavera 50 4T 3V ie ABS E5 Mickey Mouse
5
Parts Catalog

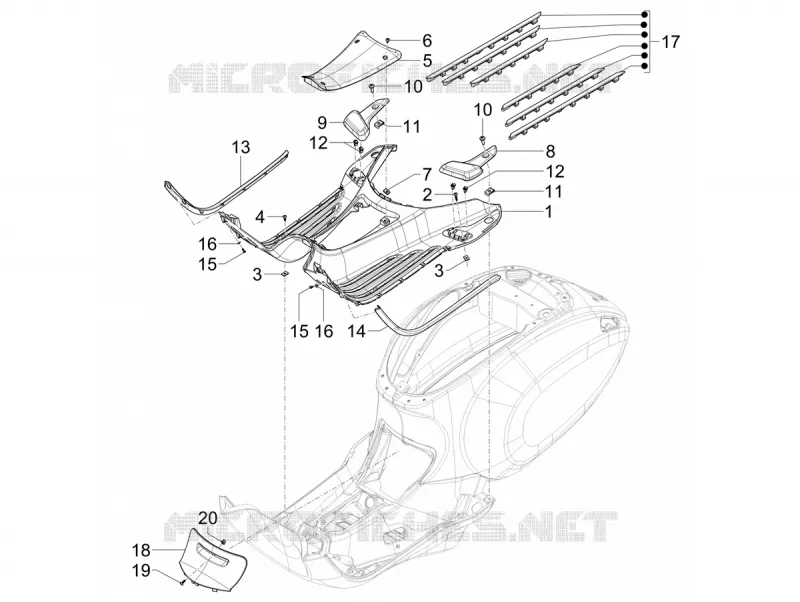

CENTRAL COVER - FOOTRESTS
6
Parts Diagram
Parts Catalog
HEADLIGHT - INDICATORS
by
Meter combination - Cruscotto
CENTRAL COVER - FOOTRESTS
1
1
2
3
3
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
15
16
16
17
18
18
19
20
1
Footrest
673612
£79,66 Unit Price incl. VAT
1
Painted footrest
67361200R7
£181,08 Unit Price incl. VAT
2
Self tapping screw
CM178608
£1,24 Unit Price incl. VAT
3
Plate
CM017408
£0,30 Unit Price incl. VAT
4
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
5
Central mat
673622
£24,04 Unit Price incl. VAT
6
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
7
Spring plate
CM017410
£0,71 Unit Price incl. VAT
8
Left-hand passenger footrest
675052000C
£33,22 Unit Price incl. VAT
9
Right-hand passenger footrest
675053000C
£33,22 Unit Price incl. VAT
10
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
11
Spring plate M6
254485
£1,64 Unit Price incl. VAT
12
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
13
Side beading DX
673641
£40,44 Unit Price incl. VAT
14
Side beading SX
673640
£40,44 Unit Price incl. VAT
15
Self tapping screw
296141
£1,39 Unit Price incl. VAT
16
Washer
013836
Not Available
17
Kit striscie pedana
6736235
Not Available
18
Spark plug insp. door
673619
£41,83 Unit Price incl. VAT
18
Painted spark plug inspection cover
67361900R7
£49,34 Unit Price incl. VAT
19
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
20
Expansion plug
157716
£0,16 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
