1
Engine displacement
125
2
Model
PRIMAVERA
3
Year
2023
4
Trim
Vespa Primavera 125 4T 3V ie ABS E5 Mickey Mouse
5
Parts Catalog

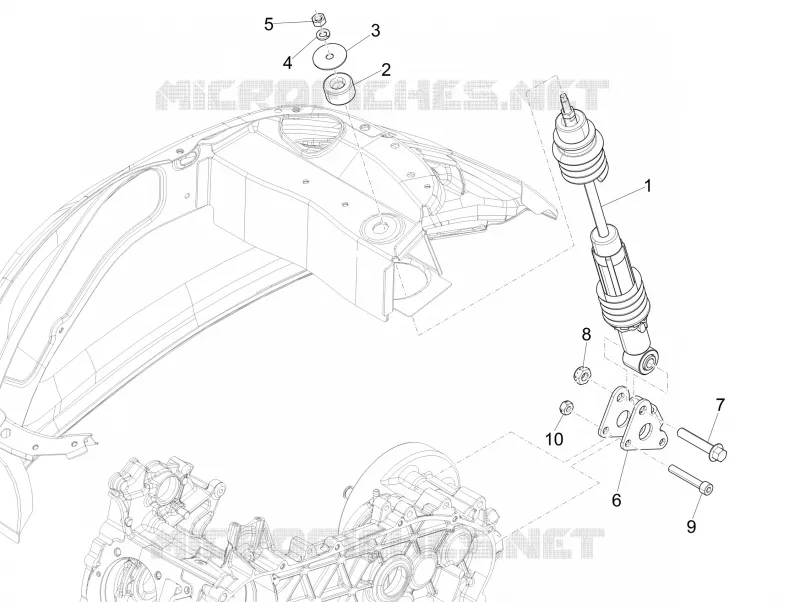

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Driving pulley
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Rear suspension - Shock absorber/s
1
2
3
4
5
6
7
8
9
10
1
Amortisseur arrière complet
1C003149
£101,21 Unit Price incl. VAT
2
Upper buffer
178150
£2,69 Unit Price incl. VAT
3
Flat washer
267038
£1,02 Unit Price incl. VAT
4
Notched washer 14x8,3x1,8
012540
Not Available
5
Nut M8
021108
Not Available
6
Rear Shock absorber fixing bracket
667872
£11,90 Unit Price incl. VAT
7
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
8
Self locking nut M10
002440
Not Available
9
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
10
Self locking nut M8
195483
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
