1
Engine displacement
50
2
Model
NRG
3
Year
0
4
Trim
NRG Purejet
5
Parts Catalog

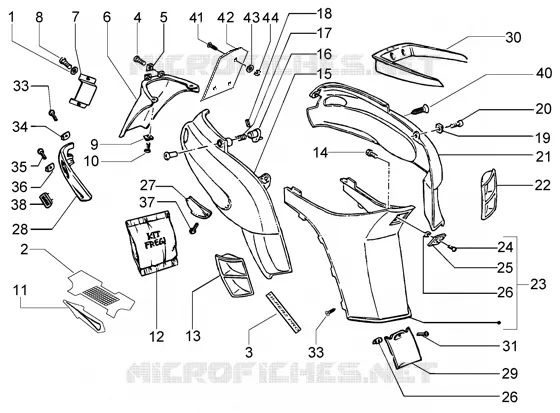

Side covers
6
Parts Diagram
Parts Catalog
Supply system
by
Front and rear mudguard
Side covers
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
33
33
34
35
36
37
38
40
41
42
43
44
1
Plain washer 5,4x10x0,8
003055
Not Available
2
"NRG PureJet" plate
62096400A7
Not Available
2
"NRG PureJet" plate
62096400A6
Not Available
3
"HI-PER2 PRO" plate
577328
Not Available
4
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
5
Spring plate M6
254485
£1,64 Unit Price incl. VAT
6
Guard
575144000C
Not Available
7
Number plate holder
292922
Not Available
7
Number plate holder support
2924654
£19,79 Unit Price incl. VAT
8
Fuel feed pipe
577811
£101,94 Unit Price incl. VAT
8
Rivet
273074
£2,45 Unit Price incl. VAT
9
Spring plate
184142
Not Available
10
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
11
Name plate
62081700A8
Not Available
11
Name plate
62081700B1
Not Available
12
Trimmings kit
62054500A7
Not Available
12
Trimmings kit
62078200A7
Not Available
12
Trimmings kit
62081500A8
Not Available
12
Trimmings kit
62173700A6
Not Available
12
Trimmings kit
62000600A7
Not Available
12
Trimmings kit
62078200A6
Not Available
12
Trimmings kit
62054500A5
Not Available
12
Trimmings kit
62081500A5
Not Available
12
Trimmings kit
62173700A4
Not Available
12
Trimmings kit
62173700A7
Not Available
13
Air intake
957183000C
Not Available
14
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
15
RH SIDE COVER MC3 686
CM00460250A7
Not Available
15
Fairing
CM00460200GH
Not Available
15
Fairing
CM00460200EB
Not Available
15
RH SIDE COVER MC3 94
CM0046025090
£116,50 Unit Price incl. VAT
15
Fairing
CM00460200F2
Not Available
16
Cam
257532
£2,84 Unit Price incl. VAT
17
Spring
257533
£1,63 Unit Price incl. VAT
18
Plate
008808
Not Available
19
Spring plate M6
254485
£1,64 Unit Price incl. VAT
20
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
21
Fairing
CM00460100EB
Not Available
21
LH SIDE COVER MC3 686
CM00460150A7
Not Available
21
LH SIDE COVER MC3 94
CM0046015090
Not Available
21
Fairing
CM00460100F2
Not Available
21
Fairing
CM00460100GH
Not Available
22
Air intake
957182000C
£32,42 Unit Price incl. VAT
23
Central cover
957268000C
Not Available
24
screw
008455
Not Available
25
Hook
265093
Not Available
26
Spring plate
184142
Not Available
27
Cover
CM00100200G9
Not Available
27
Cover
CM00100200BD
Not Available
27
Cover
CM00100100G9
Not Available
27
Cover
CM00100100R7
Not Available
27
Cover
CM00100100RF
Not Available
27
Cover
CM00100100BD
Not Available
27
Cover
CM00100200R7
Not Available
27
Cover
CM00100100A3
Not Available
27
Cover
CM00100200A3
Not Available
27
Cover
CM00100200RF
Not Available
28
Cover
581205000C
Not Available
28
Cover
581204000C
£34,28 Unit Price incl. VAT
29
Spark plug insp. door
957216000C
Not Available
30
Joint
575908
£7,07 Unit Price incl. VAT
31
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
33
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
34
Spring plate
184142
Not Available
35
screw 3,5x16
015859
Not Available
36
Plate
271760
£0,66 Unit Price incl. VAT
36
Plate
CM017404
£1,24 Unit Price incl. VAT
37
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
38
Lateral reflector
293556
Not Available
40
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
41
Self-tapping screw
018623
Not Available
41
screw M4x14
018591
Not Available
42
Nut
020105
Not Available
42
Number plate holder (Lamiera)
580124
Not Available
43
Flat washer 4,2x12x1
013763
Not Available
44
Nut M4
020104
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
