Engine displacement
500
2
Model
BEVERLY
3
Year
2008
4
Trim
Beverly ie E3
5
Parts Catalog
Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Driven pulley
by
Oil pump
Crankcase cover - Crankcase cooling
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
1
COMPLETE TRANSMISS.COVER
842354
Not Available
2
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
3
Circlip
825667
£0,86 Unit Price incl. VAT
4
Radial bearing
840277
£9,43 Unit Price incl. VAT
5
Deflector
842355
Not Available
7
Spring
CM013201
£0,76 Unit Price incl. VAT
7
Hose clamp
253293
£3,91 Unit Price incl. VAT
8
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
9
Cover soundproofing material
873492
Not Available
9
Transmission soundproofing cover
833314
Not Available
10
Air filter
833318
£36,29 Unit Price incl. VAT
11
Soundproofing material
833320
£65,36 Unit Price incl. VAT
12
Soundproofing material
833321
£10,00 Unit Price incl. VAT
13
Cooling Variator Cover
840431
Not Available
14
Spring plate
CM017410
£0,71 Unit Price incl. VAT
15
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
16
Deflector
620669
£29,65 Unit Price incl. VAT
17
Washer 4,5x12x1
016670
Not Available
18
Rivet
252099
£1,24 Unit Price incl. VAT
19
Screw w/ flange M6x40
414834
Not Available
20
screw
833663
Not Available
21
Screw m8x100
833664
£2,00 Unit Price incl. VAT
22
Transmission cover
840439
£10,10 Unit Price incl. VAT
23
Snap ring
242364
£2,42 Unit Price incl. VAT

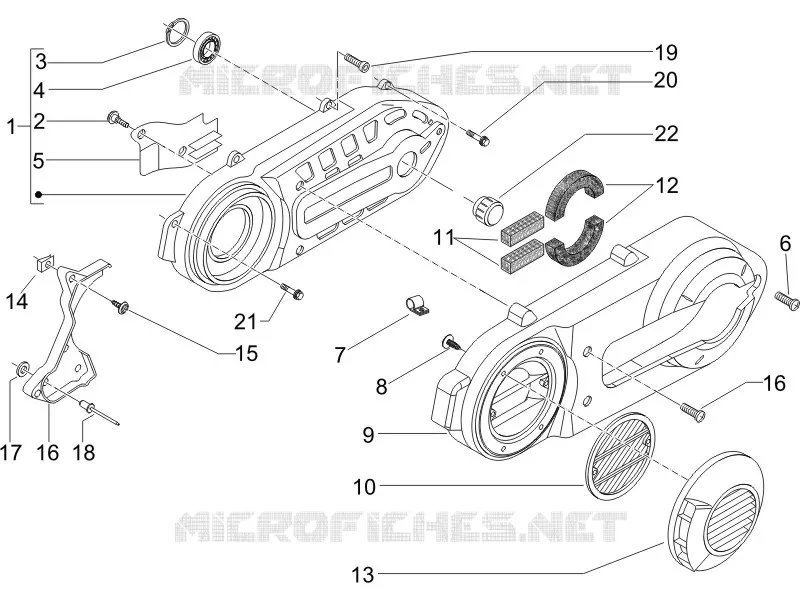

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
