Parts Catalog
Flywheel magneto
6
Parts Diagram
Parts Catalog
Crankcase cooling
by
Belt cooling tube-intake tube
Flywheel magneto
1
2
3
4
5
6
7
8
11
12
13
14
16
17
18
19
20
21
22
23
24
25
26
27
27
1
Screw M5x10
018575
Not Available
1
Screw m5x22
015901
Not Available
2
RONDELLA ELASTICA CURVATA (D10 F5,3)
006965
Not Available
3
Flanged nut M12
436783
Not Available
4
(Mitsuba) complete rotor
486140
Not Available
4
Rotor
827903
Not Available
5
Stator
833697
Not Available
5
Stator
828135
Not Available
5
Stator
827902
Not Available
6
LINGUETTA A DISCO
000267
Not Available
7
VOLANO MAGNETE COMPLETO
58059R
£213,92 Unit Price incl. VAT
7
Cdi magneto assy
82572R
Not Available
8
Air deflector
8299615
Not Available
9
VITE TCCIC M5X22 (5.8)
828662
£1,33 Unit Price incl. VAT
11
TAPPO CONTR.FASATURA
825529
£2,36 Unit Price incl. VAT
12
Gasket ring
485084
Not Available
12
Gasket ring
842595
Not Available
13
Ceramic insert
486216
Not Available
14
Ball bearing
827149
Not Available
15
screw
030251
Not Available
16
Water pump shaft assy.
827714
Not Available
17
Drive coupling
487459
Not Available
18
COPERCHIO POMPA "H2O"
486237
£26,18 Unit Price incl. VAT
19
O.R. COPERCHIO POMPA
485080
£2,23 Unit Price incl. VAT
20
VITE TCCIC M5X22 (5.8)
828662
£1,33 Unit Price incl. VAT
21
screw
828569
Not Available
22
Oil delivery pipe
840022
Not Available
22
Oil delivery pipe
827207
Not Available
23
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
£2,06 Unit Price incl. VAT
24
Water pump shaft assy.
827714
Not Available
25
VITE A TESTA CIL.INC.
828493
£0,58 Unit Price incl. VAT
26
RONDELLA ELASTICA CURVATA (D10 F5,3)
006965
Not Available
27
RONDELLA PIANA
828535
£0,16 Unit Price incl. VAT

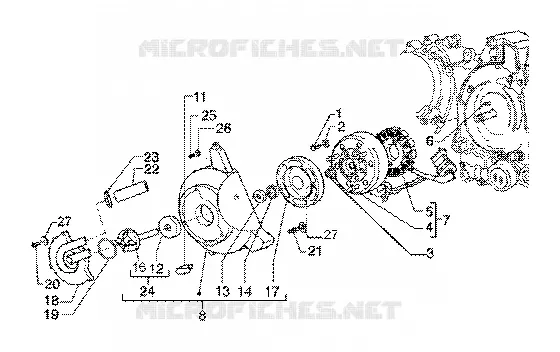

Find the detailed Flywheel magneto GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
