Parts Catalog
Pump group-oil pan
6
Parts Diagram
Parts Catalog
by
Rear wheel shaft
Pump group-oil pan
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Chain tensioner rod spacer
485868
Not Available
2
Chain tensioner rod
828303
Not Available
3
PATTINO FISSO
828308
£4,94 Unit Price incl. VAT
4
Screw w/ flange M6x25
414837
Not Available
5
Oil pump assembly
844352
Not Available
5
Oil pump
487343
Not Available
6
Screw w/ flange M6x25
414837
Not Available
7
VITE A TESTA ESAGONALE FLANG. PAR. FIL.
433477
£1,42 Unit Price incl. VAT
8
MOLLA A TAZZA
436695
£2,09 Unit Price incl. VAT
9
Screw w/ flange M6x14
833722
Not Available
10
PARATIA OLIO
483767
£10,06 Unit Price incl. VAT
11
PARATIA OLIO SUPERIORE
485047
£12,44 Unit Price incl. VAT
12
COPPA OLIO MOTORE
843761
£70,16 Unit Price incl. VAT
12
Pan oil
829523
Not Available
13
VITE A TESTA ESAGONALE FLANGIATA
484123
£0,54 Unit Price incl. VAT
14
CORONA POMPA OLIO
287913
£8,52 Unit Price incl. VAT
15
CATENA POMPA OLIO (50 PS)
82649R
£15,60 Unit Price incl. VAT
16
PIGNONE COM.POMPA OLIO
82783R
£22,50 Unit Price incl. VAT
16
Oil pump control pinion
483784
Not Available
17
Carter-oil pump gasket
486082
Not Available
18
Camshaft chain
82644R
Not Available
19
PIGNONE DISTRIBUZIONE
825595
£26,77 Unit Price incl. VAT
20
RONDELLA PARAOLIO
483918
£1,27 Unit Price incl. VAT
21
ANELLO DI TENUTA (O-R)
825620
£8,42 Unit Price incl. VAT
22
ANELLO DI TENUTA k7
82538R
£15,91 Unit Price incl. VAT
23
TAMPONE CATENA POMPA OLIO.
434345
£7,32 Unit Price incl. VAT
24
Cover
828875
Not Available
25
GRANO DI RIFERIMENTO (Ø7,5, H=12)
277916
£6,38 Unit Price incl. VAT
26
Oil filler plug
846819
Not Available
26
TAPPO OLIO COMPLETO
843364
£5,90 Unit Price incl. VAT
26
Oil plug assembly
827761
Not Available
27
GUARNIZIONE CARTER/COPPA OLIO
830128
£6,46 Unit Price incl. VAT
28
O-ring
479986
Not Available
29
Plain washer
487937
Not Available

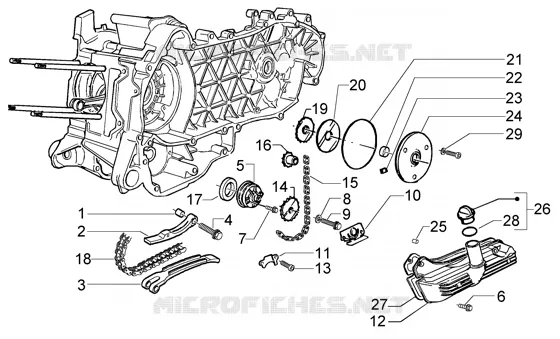

Find the detailed Pump group-oil pan GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
