1
TUBAZIONE RIGIDA FRENO POST.
600812
£123,82 Unit Price incl. VAT
1
BREAK PIPES
597948
Not Available
2
Piping
597202
Not Available
2
Piping
600290
Not Available
3
TUBAZIONE FRENO (PINZA-POMPA)
599837
£47,08 Unit Price incl. VAT
3
Brake pipe (caliper-pump)
597592
Not Available
4
Brake pipe (valve-pump)
564784
Not Available
5
Piping
598827
Not Available
5
TUBAZ.FRENO FLESSIBILE
599838
£40,01 Unit Price incl. VAT
6
FASCETTA
564836
£1,50 Unit Price incl. VAT
7
PASSACAVO
230636
£3,90 Unit Price incl. VAT
8
Valve
597912
Not Available
9
Fairlead
274350
Not Available
10
FASCETTA
564629
£3,49 Unit Price incl. VAT
11
RONDELLA
127927
£1,04 Unit Price incl. VAT
12
VITE ESP.TE M10X18
265451
£4,94 Unit Price incl. VAT
13
RONDELLA ELASTICA CURVATA
006966
Not Available
14
screw
812592
Not Available
15
VITE A TC - A M6x10 DIN 7985 -4.8
018509
Not Available
16
VITE A TESTA CILINDRICA M6X12
122675
£0,38 Unit Price incl. VAT
17
Hose clamp
564835
Not Available
18
PASSACAVO
563989
£2,20 Unit Price incl. VAT

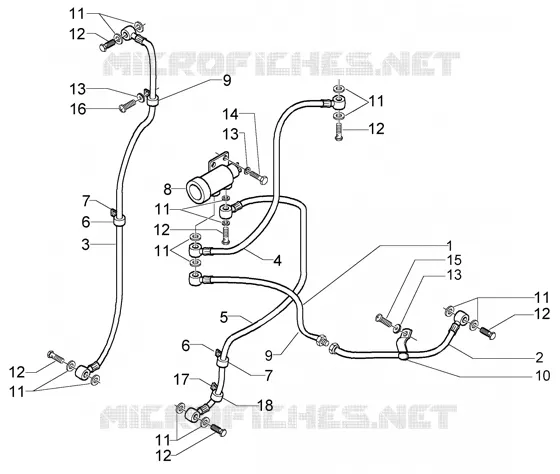

Find the detailed Brake pipes GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
